2500-3.3Li 2800 Alternator suspension bracket

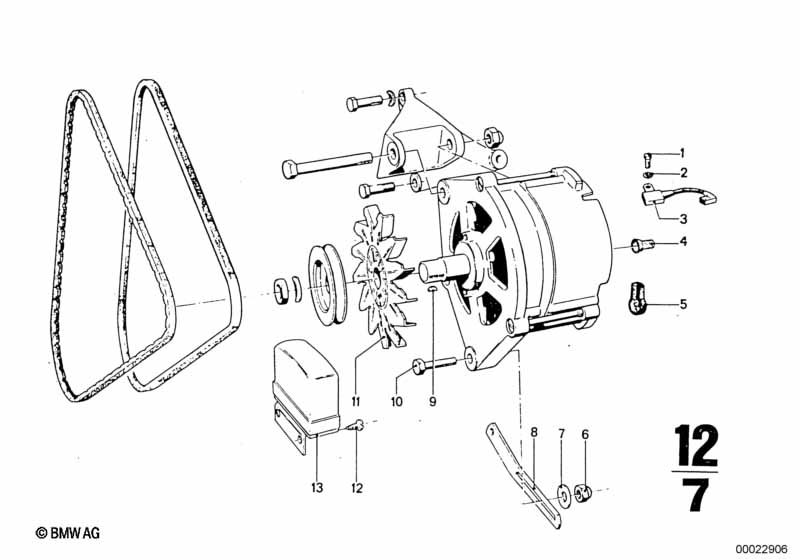

Alternator suspension bracket
No. Description Supp. Qty  From   Up To  Part Number Price Notes
04 Protection cap 1 08/1968 02/1977 12311350280 ENDED
06 Self-locking hex nut M8 1 03/1987 07129922714 $0.17 ENDED
06 Self-locking hex nut M8 1 02/1977 07129946400 $0.35 ENDED
06 Self-locking hex nut M8-8-ZNNIV SI 1 07129905767 $0.27 ENDED
06 Self-locking hex nut M8-8-ZNNI SI 1 07129906196 $1.60
07 Washer A8,4X25 1 23711246623 $0.20 ENDED
07 Washer A8,4X25 1 07147201571 $0.20
08 Adjusting bar 1 08/1968 02/1977 12311266121 $1.74
09 Woodruff key 3X3,7 1 07119951430 $1.21
10 Hex bolt M8X40 1 07119901161 $0.55 ENDED
10 Hex bolt M8X40-ZNNIV SI 1 07119905549 $1.05
11 Fan wheel 1 12311350199 $14.54
12 Fillister head self-tapping screw ST5,5X13 2 07119907770 $0.11 ENDED
13 Voltage regulator 12 VOLT 1 08/1968 02/1977 12321350052 $128.23
Notes
  • ENDED = the part has been discontinued (no longer available).
