2500-3.3Li 2800 Alternator

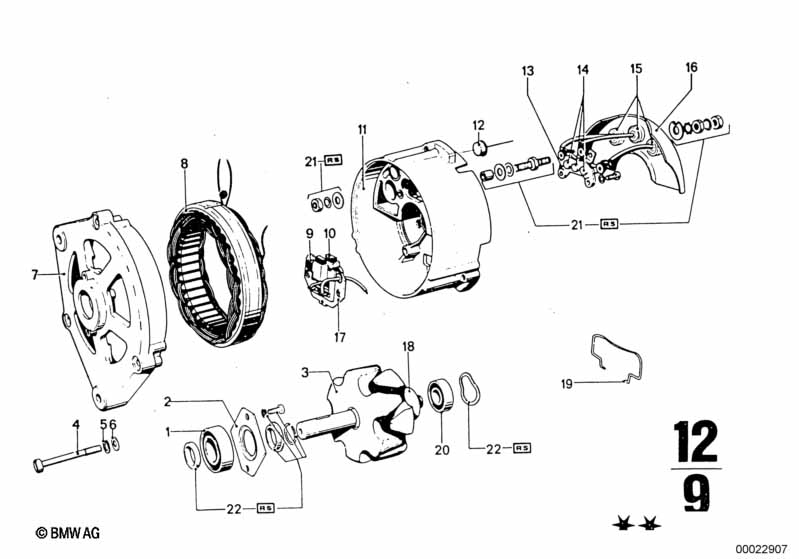

Alternator
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i 45 A
01 Grooved ball bearing 40X17X12 1 12311714522 $17.93 ENDED
02 Supporting plate 1 08/1968 02/1977 12311459279 $1.12
03 Rotor 1 12311353419 ENDED
03 Rotor 1 08/1968 02/1977 12311354651 ENDED
04 Fillister-head screw 3 12311350346 ENDED
04 Fillister-head screw 3 08/1968 02/1977 12311354652 ENDED
05 Spring washer B5 3 07119933060 $0.11
06 Washer A5,3-140 HV-ZNS 3 02/1977 07119931029 $0.40 ENDED
06 Washer 10X5,3X1-200 HV 3 07119904206
06 Washer 5,3-140 HV-ZNS 3 07119936439 $0.40
07 Housing assy front 1 12311350629 ENDED
08 Stator assy 14V-45A 1 12311353420 ENDED
08 Stator assy 1 08/1968 02/1977 12311354650 ENDED
09 Spring 2 12318602149 ENDED
10 Carbon brush set 1 12318602191 $14.57
11 Housing assy rear 14 VOLT GENER. 1 12311350339 ENDED
12 Diode NEGATIV 3 12311350337 ENDED
13 Diode assy 1 12311354589 $50.50 ENDED
14 Diode 3 12311354590 $15.07 ENDED
15 Diode POSITIV 3 12311350336 $9.95 ENDED
16 Plate 1 12311350345 $80.63 ENDED
17 Brush holder plate 1 12311354584 $41.39
18 Slip ring 1 12311354689 ENDED
19 Bow 1 12311354764 ENDED
20 Grooved ball bearing 32X12X10 1 12311739203 $21.20
21 Repair kit alternator 1 12311350341 ENDED
21 Repair kit rotor 1 08/1968 02/1977 12311354659 ENDED
22 Repair kit rotor 1 12311350332 $14.45
Notes
  • ENDED = the part has been discontinued (no longer available).
