2500-3.3Li 2800 Alternator parts 55a

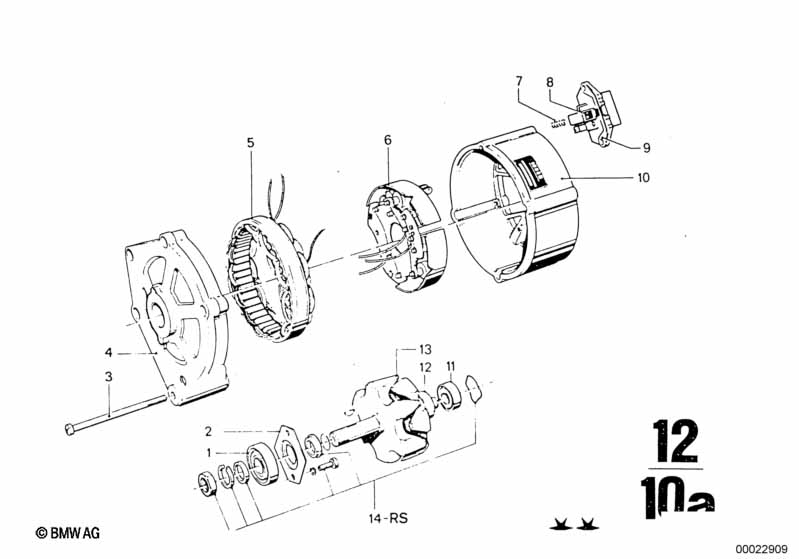

Alternator parts 55a
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Grooved ball bearing 40X17X12 1 12311714522 $17.93 ENDED
02 Supporting plate 1 12311459279 $1.12
03 Fillister-head screw 4 12311354683 ENDED
04 Housing assy front 1 09/1973 02/1977 12311361936 ENDED
05 Stator assy 1 12311354676 ENDED
06 Diode assy 1 12311354682 $75.61 ENDED
07 Compression spring 2 12311268412 $0.35
08 Carbon brush set 1 12311354681 $4.08 ENDED
09 Voltage regulator BOSCH 1 12311286073 $63.58 ENDED
10 Housing assy rear 1 12311359768 ENDED
11 Grooved ball bearing 32X12X10 1 12311739203 $21.20
12 Slip ring 1 12311354689 ENDED
13 Rotor 1 12311358008 ENDED
14 Repair kit rotor 1 12311350332 $14.45
Notes
  • ENDED = the part has been discontinued (no longer available).
