2500-3.3Li 2800 Carburetor cap/piston/float

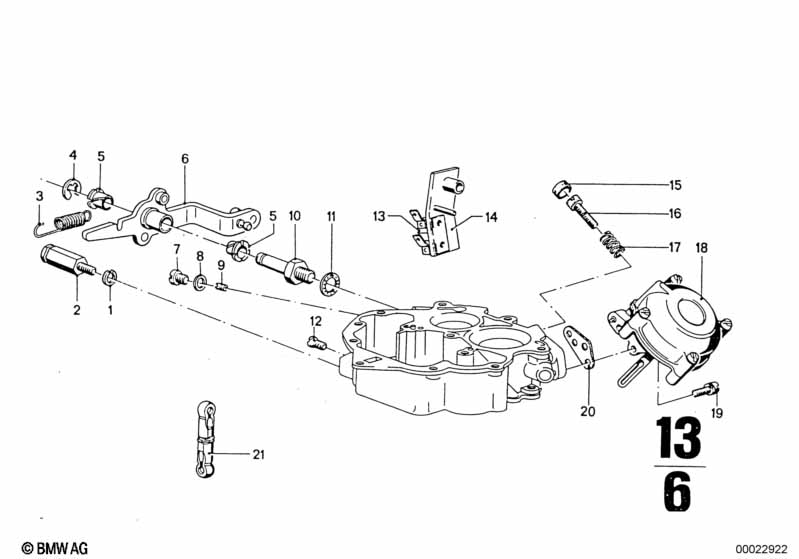

Carburetor cap/piston/float
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Spring washer 2 13110539119 ENDED
02 Pin 2 13111253045 ENDED
03 Tension spring 2 13111253046 ENDED
04 Circlip 7,0 2 02/1977 07119932852 $0.09 ENDED
04 Circlip 7,0 2 07119905858 $0.96
04 Circlip 2 08/1968 02/1977 13111253041 ENDED
05 Bushing 4 13111258250 $4.05 ENDED
06 Lever 2 13111258248 ENDED
10 Bolt 2 01/1969 02/1977 13111705865 ENDED
11 Spring washer 2 13111258255 ENDED
12 Fillister-head screw 2 13111259625 ENDED
16 Adjusting screw 2 13111253048 ENDED
17 Compression spring 2 13110639389 ENDED
18 Vacumm box 2 04/1969 02/1977 13111253436 $283.46 ENDED
19 Set fillister head screw 10 M5X16 6 07509064340 ENDED
20 Gasket 2 13111253043 $2.34 ENDED
21 Connection rod 2 13111253047 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
