2500-3.3Li 2800 Carburetor cap/piston/float

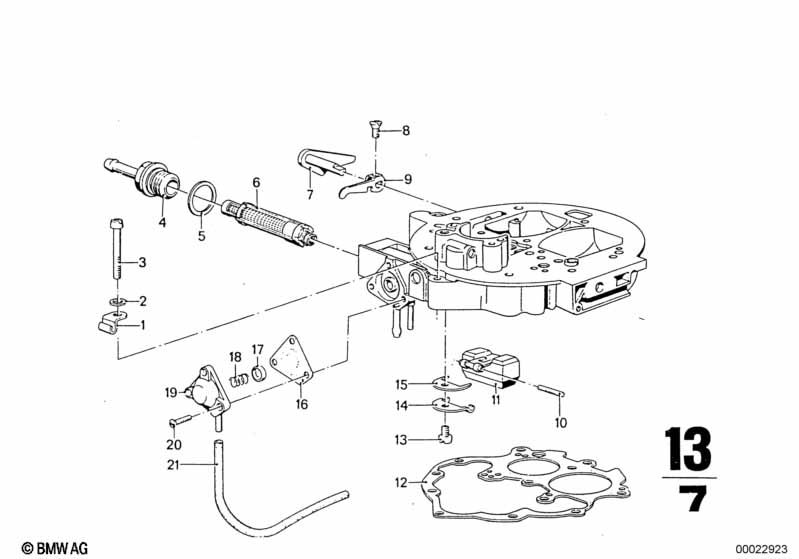

Carburetor cap/piston/float
No. Description Supp. Qty  From   Up To  Part Number Price Notes
02 Washer 2 13111259651 ENDED
03 Fillister-head screw 4 13111253073 ENDED
03 Fillister-head screw 2 13111258174 ENDED
04 Connector 2 08/1968 02/1977 13111253075 ENDED
04 Connector 2 09/1973 02/1977 13111260441 ENDED
05 Gasket ring 2 08/1968 02/1977 13111255586 ENDED
07 Lever 2 13111253071 ENDED
08 Kit pump cover 2 13111709124 $123.88 ENDED
09 Lever 2 13111253072 ENDED
10 Float axis 2 13110639207 $0.88 ENDED
11 Set float assy 2 13111709119 $191.16 ENDED
12 Gasket 2 08/1968 09/1973 13111253049 $11.32
13 Fillister-head screw 2 13111261053 ENDED
15 Holder 2 13111253052 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
