2500-3.3Li 2800 Carburetor cap/piston/float

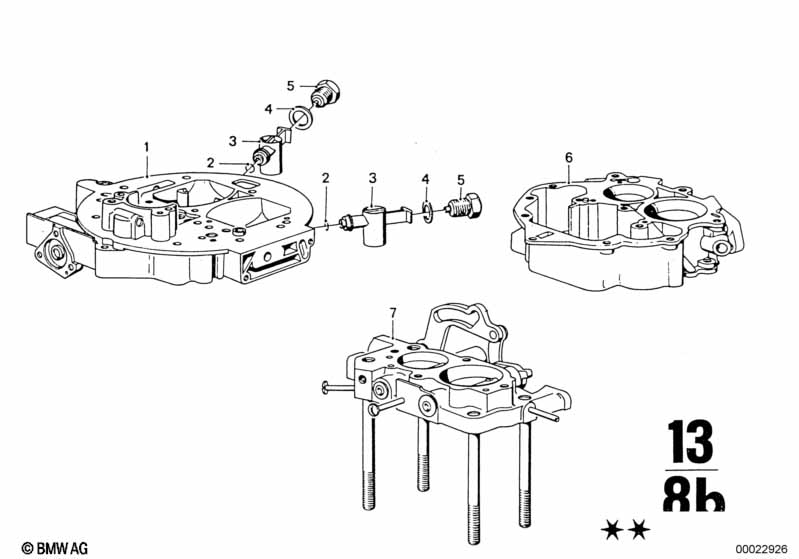

Carburetor cap/piston/float
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Carburator frame 2 02/1969 09/1973 13111254720 ENDED
02 O-ring 4 08/1968 09/1973 13111255585 ENDED
03 Pre-atomizer 4 08/1968 09/1973 13111260433 $18.08 ENDED
04 Gasket ring 4 13111250721 ENDED
05 Screw 4 13111253065 ENDED
06 Float chamber 2 02/1969 09/1973 13111256000 ENDED
07 Throttle housing 2 05/1969 09/1973 13111257880 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
