2500-3.3Li 2800 Carburetor-choke body

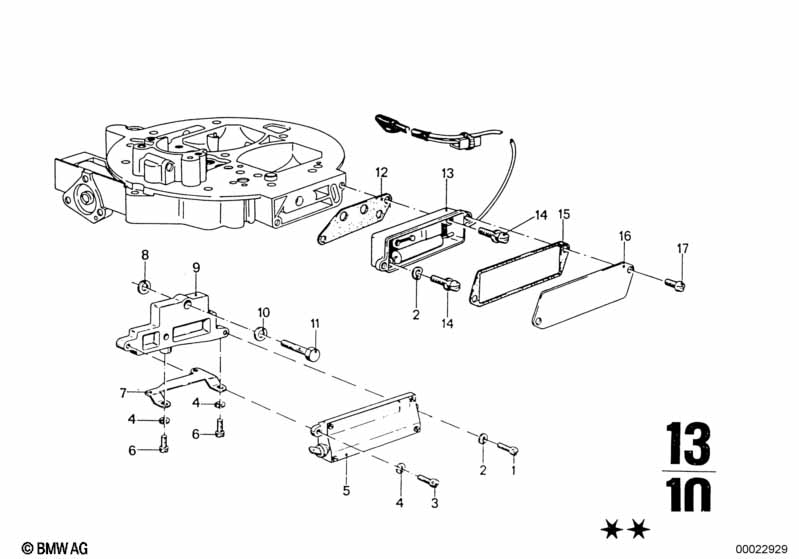

Carburetor-choke body
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fillister-head screw M4X12 2 01/1969 02/1977 13110539263 $0.67 ENDED
02 Wave washer 2 01/1969 02/1977 13111253079 ENDED
03 Fillister-head screw 2 01/1969 02/1977 13111261054 ENDED
04 Set spring washer 50 B4 6 01/1969 02/1977 07509063158 ENDED
05 Additional starting device assy 2 01/1969 09/1973 13111253920 ENDED
06 Fillister-head screw 4 01/1969 02/1977 13111261053 ENDED
07 Shackle 2 01/1969 02/1977 13111253081 ENDED
08 Gasket ring 2 01/1969 02/1977 13111253435 $0.86
09 Holder 2 01/1969 02/1977 13111253076 ENDED
10 Gasket ring 2 01/1969 02/1977 13111253435 $0.86
11 Hollow bolt 2 01/1969 02/1977 13111253077 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
