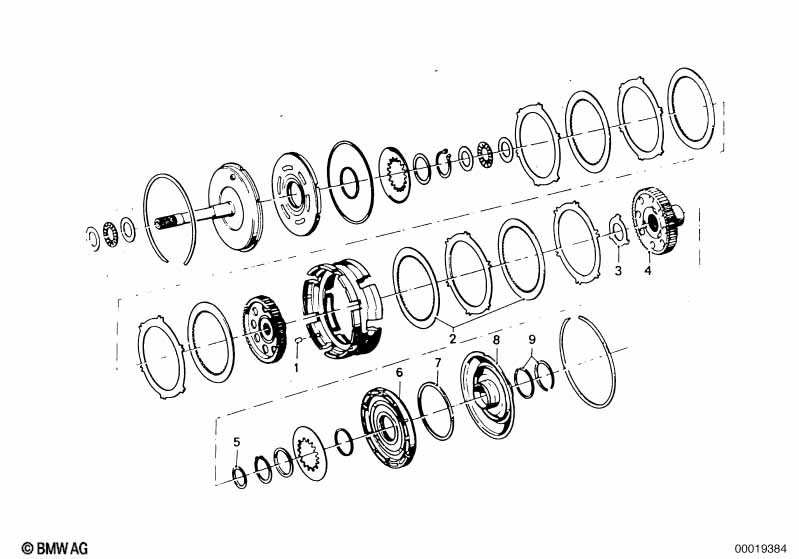

2500-3.3Li 2800 ZF 3hp20 drive clutch A/B

ZF 3hp20 drive clutch A/B
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cylinder 5X5 7 07119986730 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
02 Clutch disc 4 24231205594 $28.72 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
03 Stop disk 1 24231202611 $5.80 ENDED
-> Fg 2542178 / 2500 A
-> Fg 2470764 / 2500 A Rl
Getr.Ntr. -> 11560
04 Disc carrier 1 24231201064 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
05 Shim 4,500MM 1 24231620134 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
ww
05 Shim 4,400MM 1 24231620135 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
ww
05 Shim 4,300MM 1 24231620136 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
ww
05 Shim 4,200MM 1 24231620137 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
ww
05 Shim 4,100MM 1 24231620138 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
ww
05 Shim 4,000MM 1 24231620139 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
ww
05 Shim 3,900MM 1 24231620140 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
ww
05 Shim 3,800MM 1 24231620141 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
ww
05 Shim 3,700MM 1 24231620142 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
ww
05 Shim 3,600MM 1 24231620143 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
ww
05 Shim 3,500MM 1 24231620144 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
ww
06 Piston 1 24231620145 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
07 Rectangring 95X102X2 1 24231620146 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
08 Hub 1 24231202610 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
09 O-ring 2 24231620148 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
Notes
  • ENDED = the part has been discontinued (no longer available).
