2500-3.3Li 2800 ZF 3hp20 planet wheel set

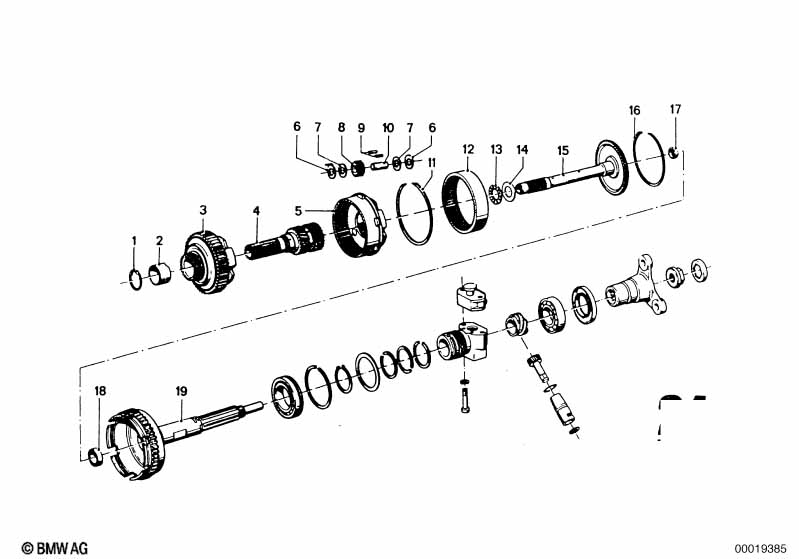

ZF 3hp20 planet wheel set
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Lock Ring A30X1,5 1 24221201071 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
02 Spacer bush 1 24221201072 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
03 Planet wheel set 1 24221202682 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
04 Hollow gear wheel,input Z=29 1 24221201074 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
05 Planet wheel set 1 24221201075 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
06 Shim 0,500MM 6 02/1969 02/1977 24221204180 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
Getr.-Nr. -> 20350 / 2500 A
Getr.-Nr. -> 20350 / 2800 A
06 Shim 0,300MM 6 24221201077 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
-> Getr.-Nr. 20350 / 2500 A
-> Getr.-Nr. 20350 / 2800 A
07 Stop disk 1,000MM 3 02/1969 02/1977 24221204179 $2.68 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
Getr.-Nr. -> 20350 / 2500 A
Getr.-Nr. -> 20350 / 2800 A
07 Stop disk S=0,7 /3HP20 6 24221201078 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
-> Getr.-Nr. 20350 / 2500 A
-> Getr.-Nr. 20350 / 2800 A
08 Planet wheel set 1 24221201080 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
09 Bearing needle AIX15,8 60 07119986704 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
10 Pin 3 24221201079 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
11 Ring 1 24221201081 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
12 Hollow gear wheel,output 1 24221201082 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
13 Ax-bearing cage 1 24221200436 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
14 Ax-washer 1 24211202609 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
15 Intermediate shaft 1 24211203626 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
Getr.Nr. -> 2755
16 Spring washer 1 24211201084 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
17 Cover 1 24211202683 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
18 Grooved ball bearing 160 02 1 07119981701 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
-> Getr.-Nr. 27538
18 Grooved ball bearing 6002 1 07119981034 ENDED
only in conjunction with
-- Output shaft X 24211204494 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
Getr.-Nr. -> 27538
19 Output shaft 1 02/1969 02/1977 24211204494 ENDED
only in conjunction with
-- Grooved ball bearing 6002 X 02/1969 02/1977 07119981034 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
Notes
  • ENDED = the part has been discontinued (no longer available).
