2500-3.3Li 2800 ZF 3hp20 drive clutch A/B

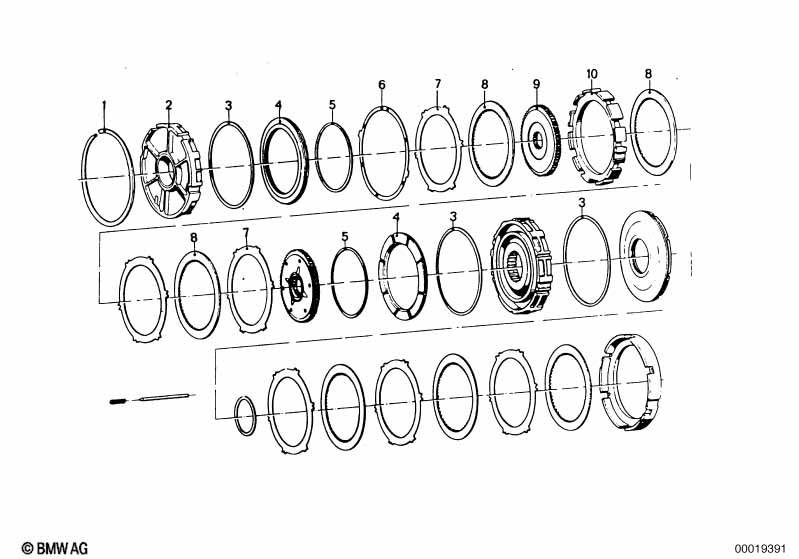

ZF 3hp20 drive clutch A/B
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Snap ring 1 24231640101 $6.81 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
02 Ring 1 24231640102 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
03 Rectangring 130X137X2 3 24231620120 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
04 Piston 2 24231640100 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
05 Rectangring 110X117X2 2 24231640103 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
06 Shim 1,500MM X 24231640106 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
ww
06 Shim 1,000MM X 24231640108 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500a Rl
06 Shim 0,800MM X 24231640109 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500a Rl
07 Outer disc 3 24231201058 $21.83
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500a Rl
08 Clutch disc 3 24231205594 $28.72 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500a Rl
09 Disc carrier 1 24231204138 $24.55 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500a Rl
10 Disc carrier 1 24231201066 $56.36 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500a Rl
Notes
  • ENDED = the part has been discontinued (no longer available).
