2500-3.3Li 2800 ZF 3hp20 drive clutch A/B

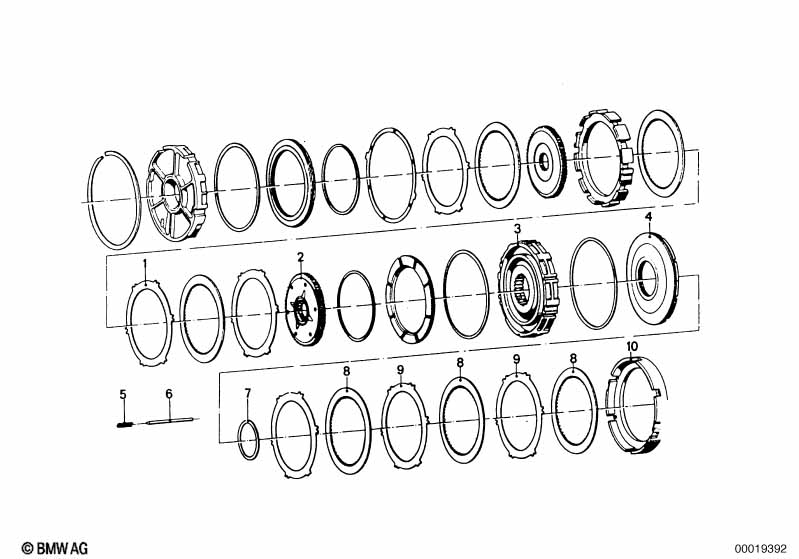

ZF 3hp20 drive clutch A/B
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Outer disc 1 24231201067 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
02 Free wheel 1 24241201068 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
03 Cylinder 1 24239058747 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
04 Piston 1 24231200441 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
05 Compression spring 12 24231203738 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
06 Pin 6 24231640115 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
07 Rectangring 60X67X2 1 24231630278 $12.28 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
08 Clutch disc 4 24231205594 $28.72 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
09 Outer disc 3 24231201069 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
10 Disc carrier 1 24231204163 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
Getr.-Nr. 26968
10 Disc carrier 1 02/1969 02/1977 24231202681 ENDED
-> Fg 2452178 / 2500 A
-> Fg 2470764 / 2500 A Rl
-> Getr.-Nr. 26968
Notes
  • ENDED = the part has been discontinued (no longer available).
