2500-3.3Li 2800 Components ZF 3HP20

Components ZF 3HP20

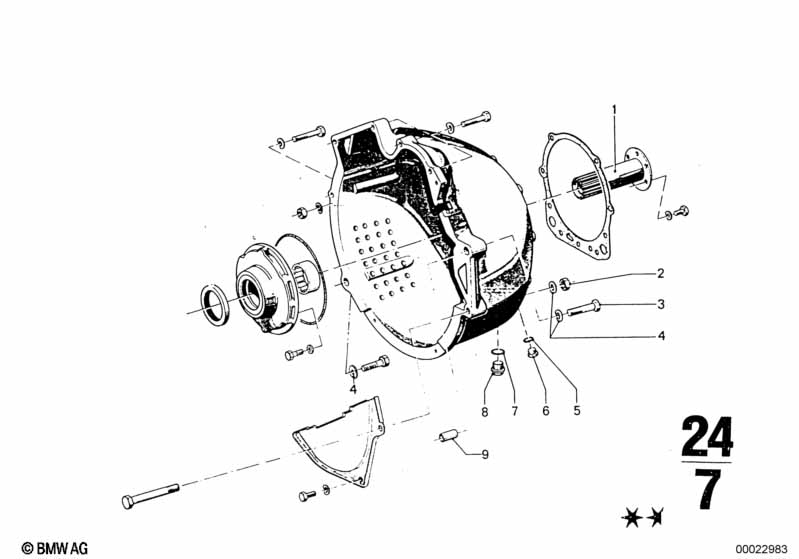

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Shaft 1 24241201107 ENDED
02 Hex nut M10-8-ZNS 2 07119915558 $0.88
03 Hex bolt M10X45 1 07119913855 $0.88 ENDED
04 Wave washer B10-ZNS 3 02/1977 07119932122 $0.38 ENDED
04 Wave washer B10-ZNS3 3 07119904463
05 Gasket ring A10X13,5-CU 1 07119963072 $0.11
06 Screw plug M10X1-ST-ZNS3 1 07119904393 $1.89
07 Gasket ring A3,2 2 07119963407 ENDED
08 Screw plug 2 24411201426 ENDED
08 Screw plug M24X1,5 2 24411202688 ENDED
09 Dowel D=14,5/11,0MM 2 24411200459 $13.83
Notes
  • ENDED = the part has been discontinued (no longer available).
