2500-3.3Li 2800 Components ZF 3HP20

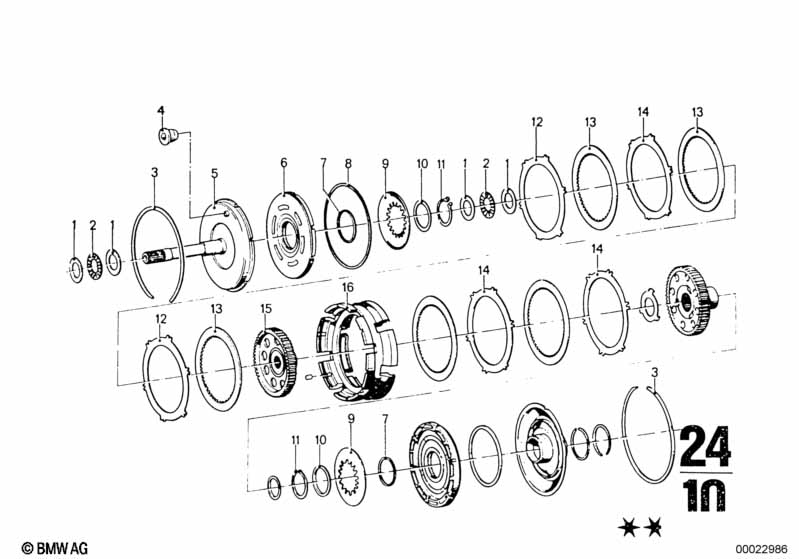

Components ZF 3HP20
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Ax-washer 4 24111620105 ENDED
02 Needle cage 2 24111620106 ENDED
03 Snap ring 2 24231200140 ENDED
04 Ventilation valve 1 24211204838 ENDED
05 Drive Shaft 1 24211201056 ENDED
06 Piston 1 24341201057 ENDED
07 O-ring 2 24231620122 ENDED
08 Rectangring 130X137X2 1 24231620120 ENDED
09 Diaphragm spring 2 24231620124 ENDED
10 Washer 2 24231620125 ENDED
11 Lock Ring 42X1,75 2 07119934230 ENDED
12 Outer disc 2 24231201061
13 Clutch disc 4 24231205594 $28.72 ENDED
14 Outer disc 6 24231201058 $21.83
15 Carrier 1 24231201060 ENDED
16 Planet wheel carrier 1 24231201059 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
