2500-3.3Li 2800 ZF 3hp22 gear shift/parking lock

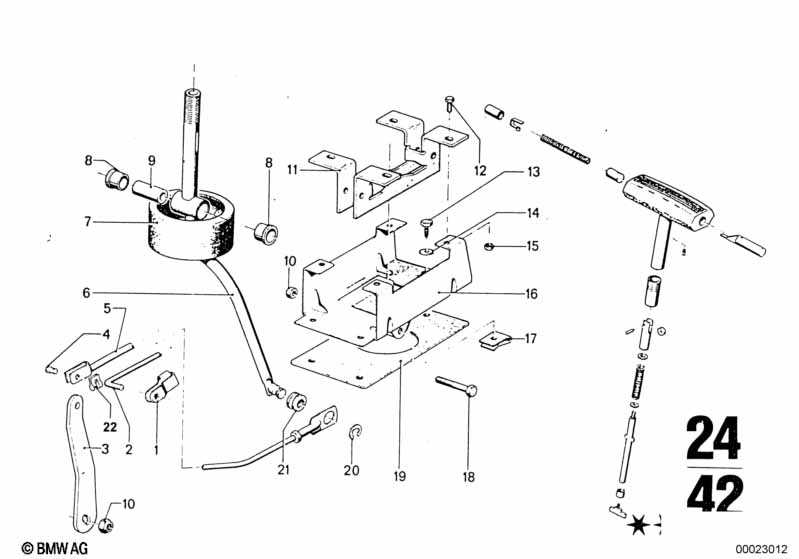

ZF 3hp22 gear shift/parking lock
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Clip 1 08/1969 02/1977 24511666369 ENDED
02 Selector rod 1 08/1969 02/1977 25161200202 ENDED
06 Shift lever 1 25161203635 $81.75 ENDED
07 Rubber seal 1 25161200013 $5.03
08 Bush 2 25161200421 $2.97 ENDED
09 Bush 1 25161200314 $1.52 ENDED
10 Self-locking hex nut M8-8-ZNS3 1 07129904002 $0.18
11 Clutch disk asbestos-free 1 08/1969 02/1977 21211223083 $156.24 ENDED
12 Hex bolt M6X12-8.8-ZNNIV 4 07119905524 $0.27
13 Hex head screw ST8X22-C 3 07119916879 $0.77
14 Washer 8,4X16X1,6-ZNNV 3 07119907030
15 Self-locking hex nut M6 4 02/1977 07129900191 $0.38 ENDED
15 Hex nut M6-8-ZNS3 4 07129904876 $0.16
15 Hex nut M6-8-ZNNIV SI 4 07129905817
16 Carrier 1 25161200940 ENDED
17 Nut ST8-1 3 07129926117 $0.24 ENDED
18 Hex bolt M8X50 1 07119912516 $0.55 ENDED
18 Hex bolt M8X50 1 07119904533 $2.84
19 Sound absorber 1 25161200947 ENDED
20 Set circlip 10 8,0 1 07509064295 ENDED
20 Circlip 8,0 1 07119932863 $0.11
21 Bush 1 08/1969 09/1973 24511666364 $1.70
21 Shim 4,800MM 1 09/1973 02/1977 25161205680 $8.05 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
