2500-3.3Li 2800 ZF 3hp22 gear shift/parking lock

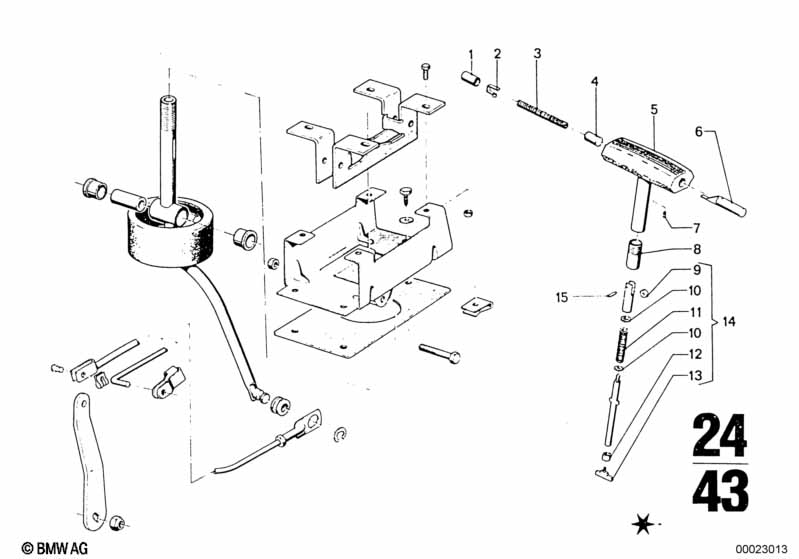

ZF 3hp22 gear shift/parking lock
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Button 1 25161200234 ENDED
02 Spring 1 25161200233 ENDED
03 Spring 1 25161200232 $8.66 ENDED
04 Holder 1 25161200130 ENDED
05 Handle 1 24511666346 $87.33 ENDED
06 Push-button 1 24511666350 ENDED
07 Screw M4X8 2 07119905104 $1.84 ENDED
08 Nut 1 25161203636 ENDED
09 Roll pin 1 24511666330 ENDED
10 Washer 2 24511666332 ENDED
11 Spring 1 24511666325 ENDED
12 Bush 1 24511666338 ENDED
13 Holder 1 24511666339 $68.00 ENDED
14 Selector rod 1 24511666323 $62.10
15 Dowel pin 3X8 1 07119942161 $0.11
Notes
  • ENDED = the part has been discontinued (no longer available).
