2500-3.3Li 2800 Drive shaft,univ.joint/center mounting

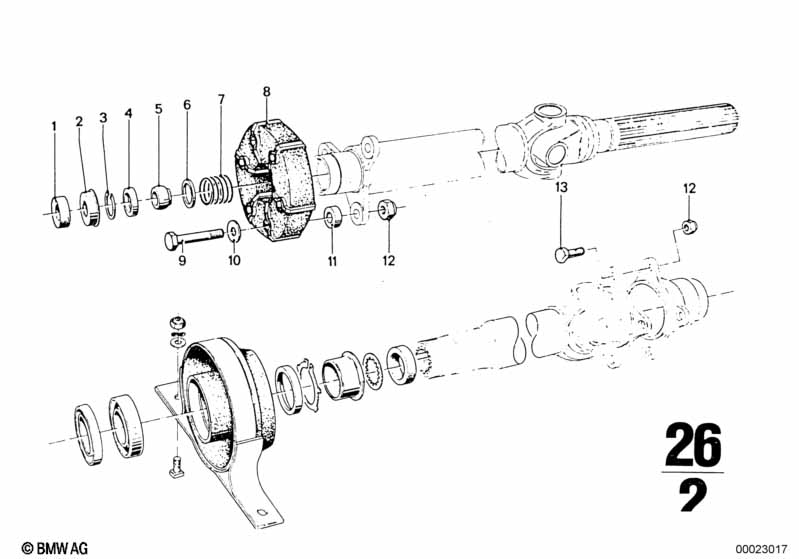

Drive shaft,univ.joint/center mounting
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Bump stop 1 08/1968 07/1976 26111100891 $7.81
01 Bump stop 1 02/1969 02/1977 26111109730 ENDED
02 Cap 1 08/1968 07/1976 26113648115 ENDED
03 Lock Ring 28X1,2 1 08/1968 07/1976 07119934640 ENDED
03 Lock Ring 28X1,2 DIN472 1 08/1968 07/1976 33307745110 $0.51
04 Ball joint 1 08/1968 07/1976 26111100391 $6.85 ENDED
05 Guide bush 1 08/1968 07/1976 26111100389 $6.27 ENDED
06 Washer 17 1 08/1968 07/1976 07119931687 $0.13
07 Compression spring 1 08/1968 07/1976 26113648104 $6.95 ENDED
08 Universal joint D=96MM/10 1 08/1968 02/1977 26111109714 $70.93
08 Spacer 7,5MM 1 08/1968 02/1977 26111109907 $10.79 ENDED
08 Universal joint LK=96MM/D=133MM 1 02/1969 02/1977 26111109603 $95.63
09 Hex bolt M12X1,5X65 6 07119914649 ENDED
09 Hex bolt M10X70 6 08/1968 02/1977 26111108506 $5.76 ENDED
09 Hex bolt M12X1,5X56 6 02/1969 02/1977 26111225486 $2.73 ENDED, SI 230292478
09 Hex bolt M12X1,5X56 6 02/1969 02/1977 27101220647 $2.16
11 Spacer 7,5MM 6 02/1969 02/1977 26111109907 $10.79 ENDED
11 Shim 6 05/1971 02/1977 26111109626 $9.40 ENDED
12 Hex nut 10 26111204183 $0.30 ENDED
13 Fillister-head screw M10X25 4 26111101015 $0.91
Notes
  • ENDED = the part has been discontinued (no longer available).
  • SI = Service Information
