2500-3.3Li 2800 Parking brake/brake shoes

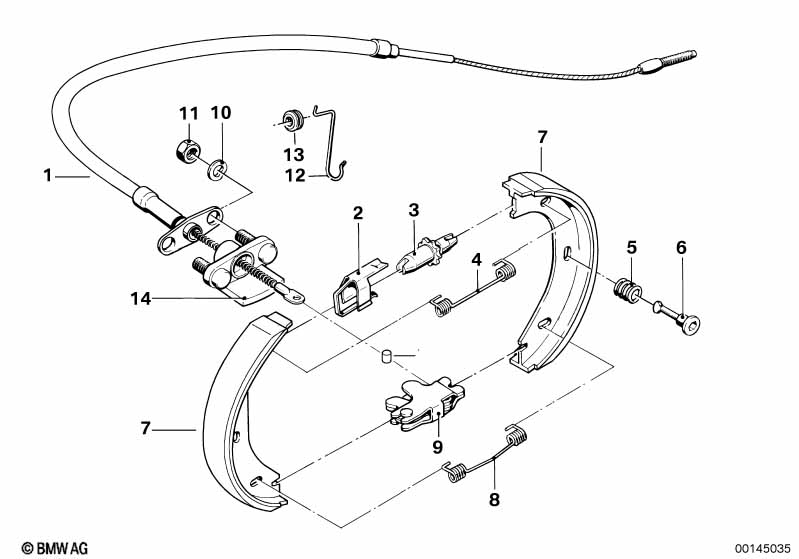

Parking brake/brake shoes
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Hand brake bowden cable 2 08/1968 02/1977 34411118582 $51.09
02 Clip 2 34411100554 $7.36
03 Adjusting screw 2 34411100550 $25.20 ENDED
03 Adjusting screw 2 34416851438
only in conjunction with
-- Clip 2 34411100554 $7.36
04 Tension spring 2 34411102308 $7.00
05 Compression spring 4 34411100122 $0.70
06 Roll pin L=33MM 4 34411100027 $4.41
07 Repair kit brake shoe asbestos-free 4 34411159467 $93.33
08 Tension spring 2 34411100641 $9.82 ENDED
08 Tension spring 2 34411121900 $11.73
09 Expanding lock 2 34411163709 $22.23 ENDED
09 Expanding lock 2 34416868624
10 Wave washer B8 4 02/1977 07119932095 $0.09 ENDED
10 Wave washer 4 07119904115 $0.09
11 Hex nut M8-ZNS 4 02/1977 07119922856 $0.56 ENDED
11 Hex nut M8-8-ZNS3 4 02/1977 07119904032 $0.16
11 Hex nut M8-8-ZNNIV SI 4 07119905515 $0.16
12 Hook 3 34411119369 $0.66
13 Grommet 3 34411102688 $2.83
14 Support 2 34411115222 $22.84
Notes
  • ENDED = the part has been discontinued (no longer available).
