2500-3.3Li 2800 Rear door - hinge/door brake

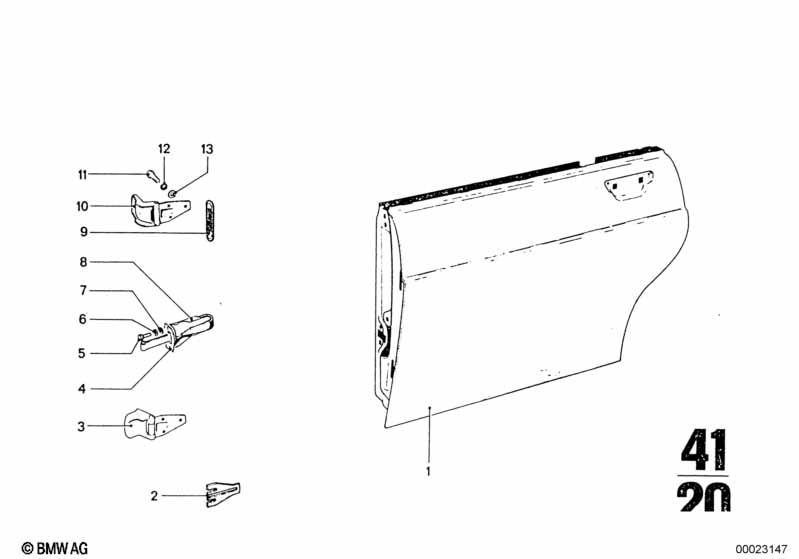

Rear door - hinge/door brake
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Door rear left 1 08/1968 02/1977 41521801461 $652.86 ENDED
-> Fg 3104789 / 3.0 S Bav.
-> Fg 3133373 / 3.0 S Bav. A
01 Door rear right 1 08/1968 02/1977 41521801462 $652.86 ENDED
-> Fg 3104789 / 3.0 S Bav.
-> Fg 3133373 / 3.0 S Bav. A
02 Hinge spacer 2,00MM 2 41511801252 ENDED
02 Hinge spacer 1,00MM 2 41511801253 $10.32
02 Hinge spacer 0,75MM 2 41511801254 $7.49 ENDED
03 Hinge 1 41521802499 $44.92 ENDED
03 Hinge 1 41521802500 ENDED
04 Stop buffer 2 41521805535 ENDED
05 Hex bolt M6X18 4 07119913472 $0.29 ENDED
05 Hex bolt M6X18 4 23317545769 $0.67
06 Wave washer B6 4 07119932072 $0.09 ENDED
07 Washer 6,4 4 02/1977 07119936425 $0.09 ENDED
07 Washer A6,4-200HV-ZNS3 4 07119903791 $0.11
08 Door brake 2 41521800554 $50.26 ENDED
09 Gasket 4 51211807212 $2.73
10 Hinge 1 41521802497 ENDED
10 Hinge 1 41521802498 ENDED
11 Hex bolt M8X20 12 07/1990 07119913644 $0.20 ENDED
11 Hex bolt M8X20-ZNS 12 07119901120 $0.60 ENDED
11 Hex bolt M8X20-ZNNIV SI 12 07119903039
12 Spring washer B8 12 07119933096 $0.18
13 Washer A8,4X25 12 23711246623 $0.20 ENDED
13 Washer A8,4X25 12 07147201571 $0.20
Notes
  • ENDED = the part has been discontinued (no longer available).
