2500-3.3Li 2800 Rear door control/door lock

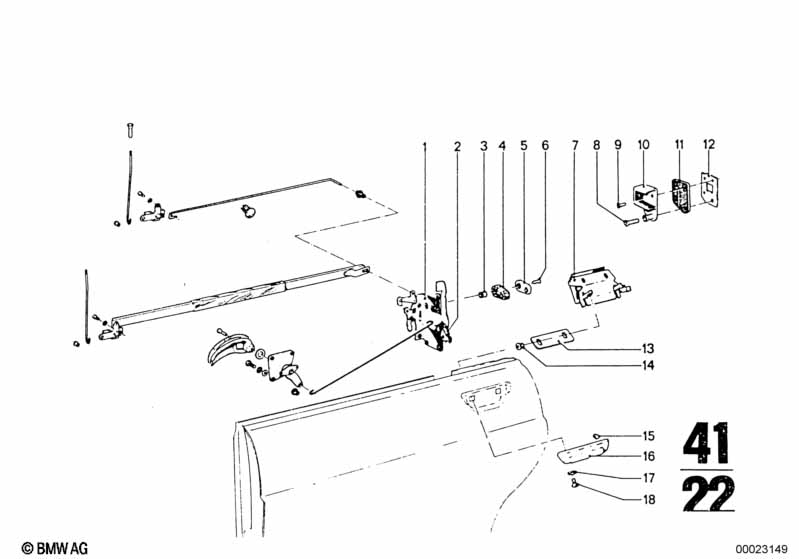

Rear door control/door lock
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Catch rear left 1 51221846033 $80.59
01 Catch rear right 1 51221846034 $80.59
02 Spring 2 51211807217 ENDED
03 Bush 2 51211823488 $1.38
04 Bump stop 2 51211823487 $6.36
05 Plate 2 51211874709 $11.68 ENDED
06 Countersunk head screw M6X12 6 07119928511 $0.07
07 Base plate 1 51221808405 ENDED
07 Base plate 1 51221808406 ENDED
08 Set countersunk head screw 25 M8X35 2 07509063233 ENDED
09 Countersunk head screw M6X16MM 6 06/2000 07119900920 $0.29 ENDED
09 Countersunk head screw M6X16-8.8-ZNS 6 07119902621 $0.25 ENDED
09 Countersunk head screw M6X16-8.8-ZNS3 6 07119904304 $0.25
11 Spacer X 51211806023 $1.17 ENDED
12 Locker plate right 2 51211851494 $4.06
13 Lock plate 2 51211832811 $6.31
14 Stop nut M6 4 02/1977 51211803363 $1.10 ENDED
14 Self-locking hex nut M6 4 07147153450 $0.47
15 Distance rubber D=6MM 4 51216742120 $1.25
16 Handle 2 51211808440 $72.39
17 Tooth washer A4,3 4 07119936037 $0.36
18 Fillister head screw M4X10 4 07119907616 $1.07
Notes
  • ENDED = the part has been discontinued (no longer available).
