2500-3.3Li 2800 Cable connection

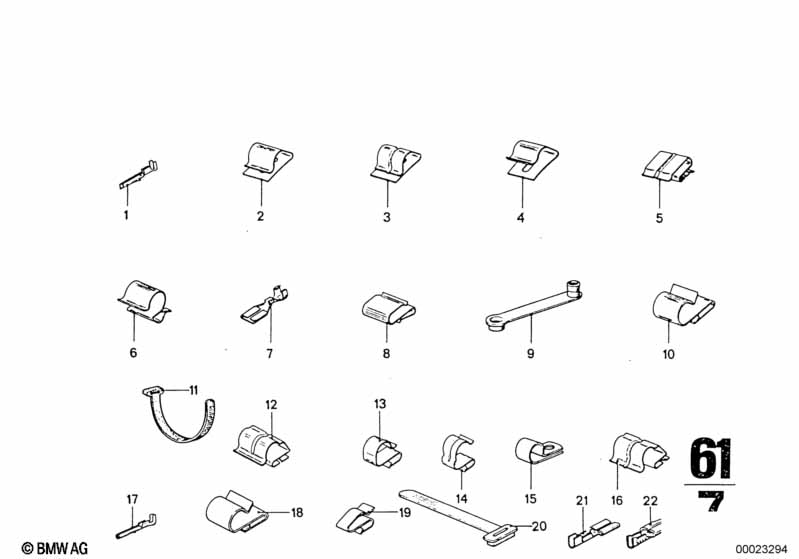

Cable connection
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Circular connector D2,1 7 61131350872 ENDED
02 Cable clamp 1 61131351135 $0.41 ENDED
03 Cable clamp 1 61131351136 ENDED
04 Cable clamp D=12MM 1 61131355345 $0.82 ENDED
05 Cable clamp D=4,5MM 1 61131353865 $0.42
06 Cable clamp D=15/B=4 1 61131353866 $0.50
07 Cable socket female B=8/L=20 20 08/1968 02/1977 61138608021 $0.55 ENDED
08 Cable clamp 2 02/1977 61138364037 $0.23 ENDED
08 Cable clamp 2 12527575212 $0.78
09 Cable holder 41MM 16 02/1977 61131353662 $1.97 ENDED
09 Cable holder 70MM 16 61131353661 $1.37
10 Cable clamp D=15/B=4 1 61131351044 $0.42
11 Cable tie 2 61131357249 ENDED
12 Cable clamp D=9/B=2,5 2 61131350864 $0.48
13 Cable clamp D=10MM 1 08/1968 02/1977 61131354601 $0.42
14 Cable clamp D=12MM 1 61131354602 $0.44
15 Clamp 1 08/1968 02/1977 61131357830 $1.95 ENDED
15 Clamp 1 08/1968 02/1977 62121365810 $1.64 ENDED
16 Cable clamp D=9/B=2,5 1 61131350864 $0.48
17 Cable socket round female D2,1 4 08/1968 02/1977 61131353260 $0.77 ENDED
18 Cable clamp 1 08/1968 02/1977 61138660184 $0.45 ENDED
19 Cable clamp 1 08/1968 02/1977 61131355741 $0.41
20 Cable tie L=292MM/B=4,8MM 3 08/1968 02/1977 61131377134 $0.77
21 Plug connection female 4 08/1968 02/1977 61131362404 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
