2500-3.3Li 2800 Windshield cleaning

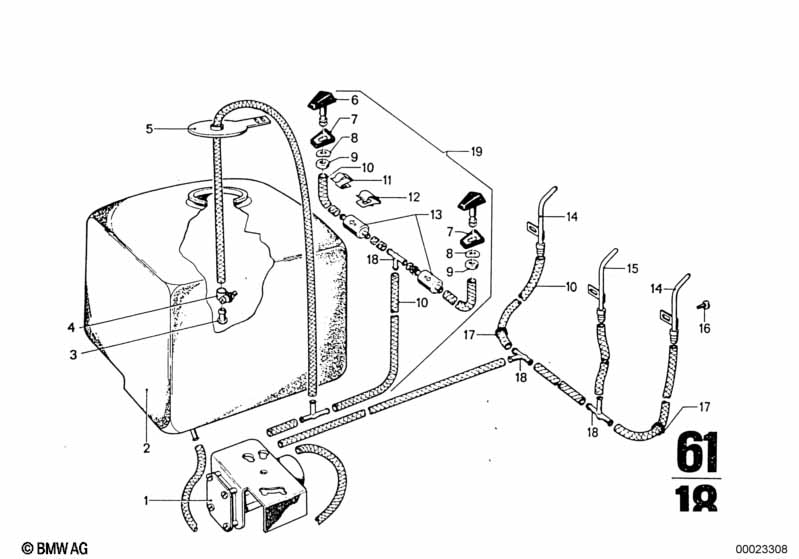

Windshield cleaning
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Wash pump 1 08/1968 02/1977 61661358328 $114.13
02 Fluid container 1 08/1968 02/1977 61661350871 $40.71
02 Fluid container 1 08/1968 02/1977 61661356190 $92.87
03 Jet 1 08/1968 02/1977 61661355072 ENDED
04 Clamp 1 08/1968 02/1977 61661356293 ENDED
05 Cover f windshield cleaning container 1 61661364807 $5.90
06 Spray nozzle 2 08/1968 02/1977 61661354822 $6.34
07 Washer 2 08/1968 02/1977 61661354194 $0.68
08 Hex nut M8-ZNS 2 08/1968 02/1977 07119922856 $0.56 ENDED
08 Hex nut M8-8-ZNS3 2 08/1968 02/1977 07119904032 $0.16
08 Hex nut M8-8-ZNNIV SI 2 08/1968 02/1977 07119905515 $0.16
09 Washer A8,4-200 2 08/1968 02/1977 07119900052 $0.11 ENDED
09 Washer 8,4X16X1,6-ZNNV 2 08/1968 02/1977 07119907030
10 Hose line D= 4,6MM 1 61661357388 $5.05
11 Cable clamp D=9/B=4 4 08/1968 02/1977 61131351045 $0.42
12 Cable clamp D=9/B=2,5 1 61131350864 $0.48
12 Cable clamp D=8/B=1,5 4 08/1968 02/1977 61131354726 $0.42
13 Valve 2 08/1968 02/1977 61661355299 $18.57
13 Valve 1 08/1968 02/1977 61661380464 $7.71
14 Spray nozzle 2 08/1968 02/1977 61711350853 ENDED
15 Spray nozzle 1 08/1968 02/1977 61711350947 $16.41 ENDED
17 Grommet 10,5MM 2 08/1968 02/1977 61218050550 $0.35
18 Distribution piece 2 61661355939 $1.18
19 Retrofit kit, windshield washer 1 08/1968 09/1973 61711355035 ENDED
-> Fg 2181016 / 2500 Rl
Notes
  • ENDED = the part has been discontinued (no longer available).
