2500-3.3Li 2800 Windshield cleaning

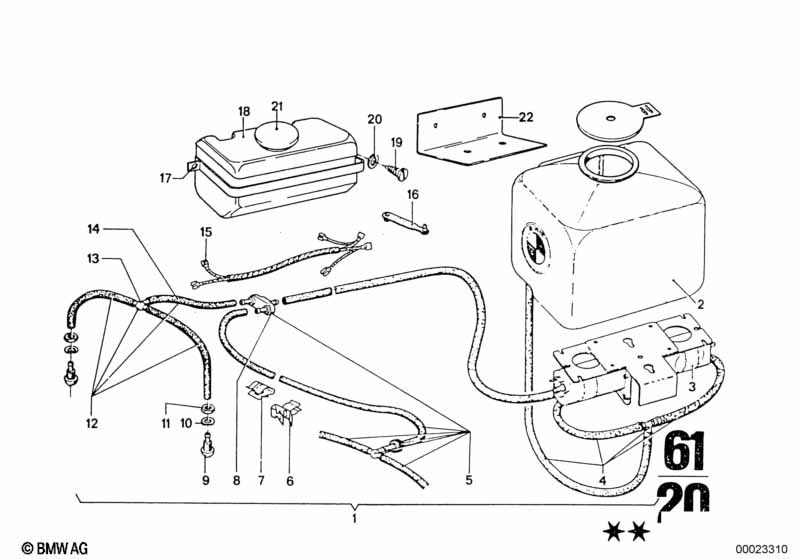

Windshield cleaning
No. Description Supp. Qty  From   Up To  Part Number Price Notes
02 Fluid container 1 08/1968 02/1977 61671356191 $42.53
03 Wash pump 1 61671359116 $152.41
03 Twin wash pump 1 61671359118 $175.21 ENDED
04 Hose line 1 61661356133 ENDED
05 Hose 1 61661356127 ENDED
06 Cable clamp 1 61131351136 ENDED
07 Cable clamp 1 02/1977 61131355442 $0.43 ENDED
07 Pipe clip 1 18307565082 $0.38
08 Valve 2 61661355299 $18.57
09 Spray nozzle 4 61671355029 $8.07
09 Jet 4 61671355871 ENDED
10 Wave washer B10-ZN 4 07119932112 $0.11 ENDED
10 Wave washer B10-ZNS 4 02/1977 07119932122 $0.38 ENDED
10 Wave washer B10-ZNS3 4 07119904463
11 Hex nut M10 4 07119922851 $0.20 ENDED
12 Hose 1 61661356126 ENDED
12 Hose line 1 61661356705 ENDED
13 Distribution piece 4 61661355939 $1.18
14 Hose line D= 4,6MM X 61661357388 $5.05
15 Wiring set 1 61121352837 ENDED
16 Cable holder 53MM 2 61131353663 $1.97 ENDED
16 Cable holder 70MM 2 61131353661 $1.37
17 Holder 1 61671357815 ENDED
18 Fluid container 1 61671357814 ENDED
19 Hex head screw ST4,8X9,5-C-ZNS 2 07119901554 $0.37 ENDED
20 Washer A5,3-140 HV-ZNS 2 02/1977 07119931029 $0.40 ENDED
20 Washer 10X5,3X1-200 HV 2 07119904206
20 Washer 5,3-140 HV-ZNS 2 07119936439 $0.40
21 Cover 1 61668645126 ENDED
21 Cover f windshield cleaning container 1 61661364807 $5.90
22 Protection plate 1 61671358254 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
