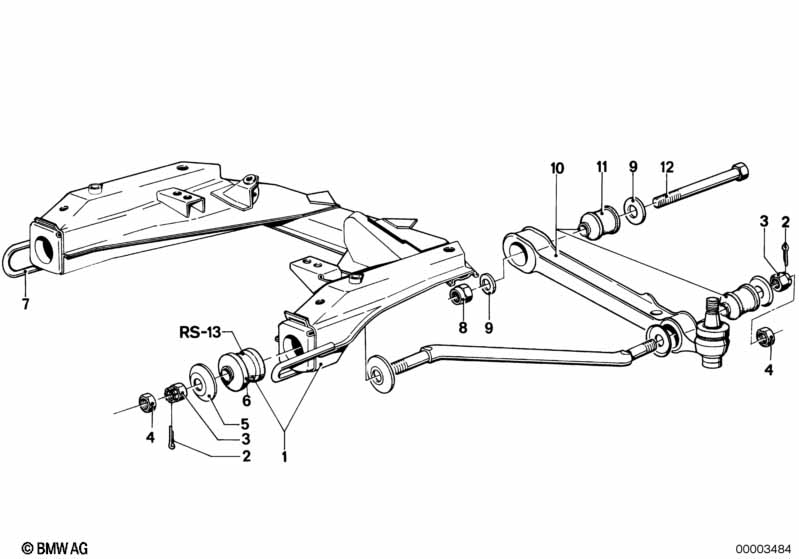

5' E12 535i Front axle support/wishbone

Front axle support/wishbone
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Front axle support 1 31111112842 $1275.79
04 Self-locking hex nut M14X1,5 ZNFE 4 31121095420 $0.88 ENDED
04 Self-locking hex nut M14X1,5-05 ZNS3 4 31106774714 $1.12
05 Washer 2 31121108294 $5.53 ENDED
06 Rubber Mounting MOTORSPORT 2 31132202395 $47.90 ENDED
07 Towing bracket 2 31111108442 $5.66 ENDED
08 Self-locking hex nut M12X1,5-10-PHR 2 07129900047 $0.62
09 Washer 12,4X25X3MM 4 07/1981 31111113513 $0.67 ENDED
09 Washer 12-300 HV-ZNS3 4 07119904119 $0.25
10 Wishbone, left 1 31121108384 $165.06 ENDED
10 Wishbone, left 1 31121108388 ENDED
10 Wishbone, right 1 31121108385 $165.06 ENDED
10 Wishbone, right 1 31121108389 ENDED
11 Rubber Mounting 2 31121119260 $11.32
12 Hex bolt M12X1,5X80 2 07119914660 $2.09
13 Repair kit rubber mounting 1 31121123553
Notes
  • ENDED = the part has been discontinued (no longer available).
