5' E12 535i Getrag 265/5 inner gear shifting parts

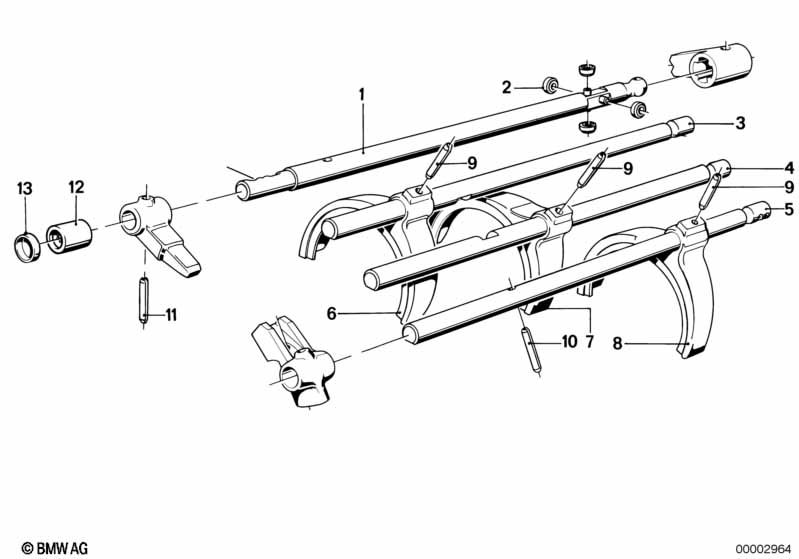

Getrag 265/5 inner gear shifting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Selector shaft 1 23311205249 $272.79 ENDED
02 Roll pin 4 23311224395 $9.24 ENDED
02 Roll pin 4 23317539086 $10.41
03 Shifting rod 4th and 5th gear 1 23311205247 $123.88 ENDED
04 Shifting rod 2nd and 3rd gear 1 23311205246 $145.08
05 Shifting rod 1st and reverse gear 1 23311205245 $123.88
ONLY APPLIES TO 4TH AND 5TH GEAR
06 Shifting fork 1 23311202674 $79.48
ONLY APPLIES TO 1ST AND REVERSE GEAR
07 Shifting fork 1 23311202672 $91.89
08 Shifting fork 1st and 2nd gear 1 23311208522 $106.86 ENDED
09 Spiral tension pin 6X24 3 23221203745 $0.52
10 Roll pin 6X32 1 07119941272 ENDED
11 Roll pin 6X28 1 07119941270 $0.95 ENDED
12 Bearing ball cage 21X15X22 1 23111282569 $11.67 ENDED
12 Bearing ball cage 21X15X22 1 23111206948
12 Bearing ball cage 21X15X22 1 23111228404 ENDED
13 Cover lid D=14MM 2 07119937227 $0.59
Notes
  • ENDED = the part has been discontinued (no longer available).
