5' E12 535i Getrag 265/5 inner gear shifting parts

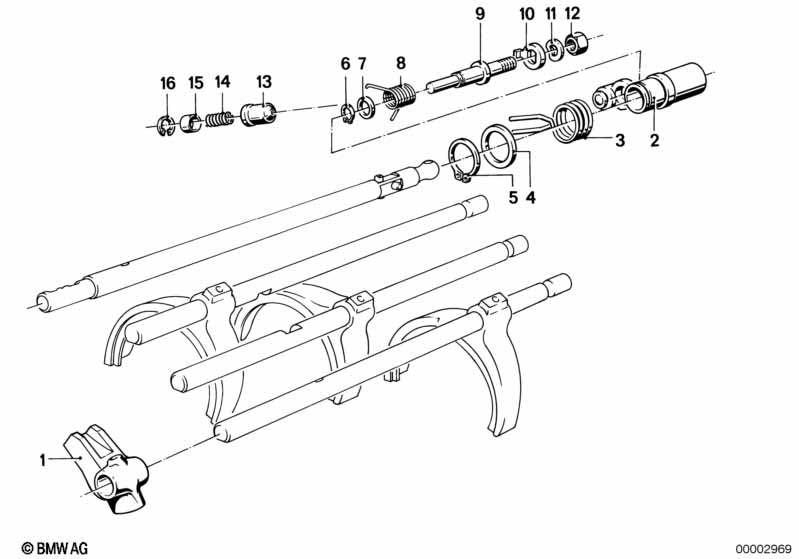

Getrag 265/5 inner gear shifting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
ONLY APPLIES TO SYNCHRON.REVERSE GEAR
01 Driving dog 1st and reverse gear 1 23311224001 ENDED
02 Selector cam 1 23121224038 ENDED
03 Retainer spring D=3,3MM 1 23311209348 $14.98 ENDED
04 Shim 32X26X1,0 1 23311202769 $1.61 ENDED
05 Lock Ring 1 23311202768 $2.30 ENDED
06 Lock Ring 12X1,0 1 07119934060 $0.56
07 Shim 12X18X1,0 1 23311224048 ENDED
08 Retainer spring D=2,4MM 1 23311224040 ENDED
09 Pin 1 23311224043 ENDED
10 Support plate 1 23311224042 ENDED
11 Wave washer B10-ZNS 1 07/1981 07119932122 $0.38 ENDED
11 Wave washer B10-ZNS3 1 07119904463
12 Hex nut M10-8-ZNS 1 07119915558 $0.88
13 Locking pin 1 23311224041
14 Compression spring D=1,7MM 1 23311204513 $2.51
15 Sealing Cover 1 23111606109 $4.00
16 Lock Ring 20X1 1 07119934624 $1.78
Notes
  • ENDED = the part has been discontinued (no longer available).
