5' E12 535i Getrag 265/6 inner gear shifting parts

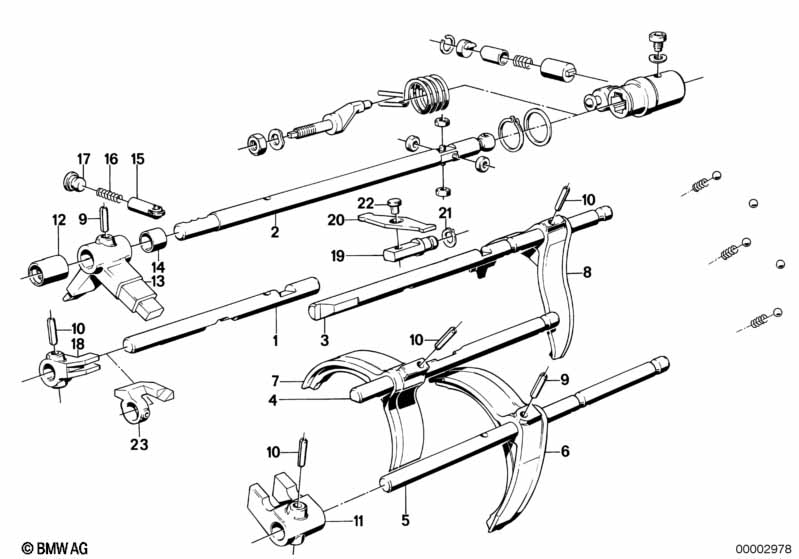

Getrag 265/6 inner gear shifting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Selector rod 1 23311208532 ENDED
02 Selector shaft 1 23311209342 $250.04 ENDED
ONLY APPLIES TO REVERSE GEAR
03 Shifting rod 5st and reverse gear 1 23311208531 $28.18 ENDED
03 Shifting rod 5st and reverse gear 1 23311220277 $28.18 ENDED
04 Shifting rod 3.and 4.gear 1 23311208530 $84.76 ENDED
ONLY APPLIES TO 1ST AND 2ND GEAR
05 Shifting rod 1.and 2.gear 1 23311208528 ENDED
06 Shifting fork 1st and 2nd gear 1 23311208522 $106.86 ENDED
ONLY APPLIES TO REVERSE GEAR
08 Shifting fork 5st and reverse gear 1 23311208526 ENDED
09 Roll pin 6X32 1 07119941143 ENDED
10 Roll pin 6X28 3 07119941381 $1.22
11 Driving dog for 1st and 2nd gear 1 23311209340 $97.93 ENDED
11 Driving dog for 1st and 2nd gear 1 23311224065 $97.93 ENDED
11 Driving dog for 1st and 2nd gear 1 23311224065 $97.93 ENDED
only in conjunction with
-- Selector cam 1 23311224064 ENDED
-- Shift 1 23311224066 $142.85 ENDED
12 Bearing ball cage 21X15X22 1 23111282569 $11.67 ENDED
12 Bearing ball cage 21X15X22 1 23111206948
12 Bearing ball cage 21X15X22 1 23111228404 ENDED
13 Shift 1 23121209349 ENDED
13 Shift 1 23311224066 $142.85 ENDED
only in conjunction with
-- Selector cam 1 23311224064 ENDED
-- Driving dog for 1st and 2nd gear 1 23311224065 $97.93 ENDED
14 Bushing 1 23117510946 $11.25
15 Locking pin 1 23311205113 $25.45
16 Compression spring D=1,1MM 1 23311207403 $1.61
16 Compression spring D=1,4 1 23311228153 $1.65
17 Blind plug 1 23311202762 $5.70 ENDED
17 Blind plug 1 23317545771 $6.03
18 Twist protection 1 23311209341 $68.08 ENDED
19 Pin 1 23121209353 $36.55 ENDED
20 Lever 1 23121209352 $9.58 ENDED
21 Lock Ring A 12X1,5 1 23121224031 $0.20 ENDED
22 Bolt 1 23121209354 $12.05 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
