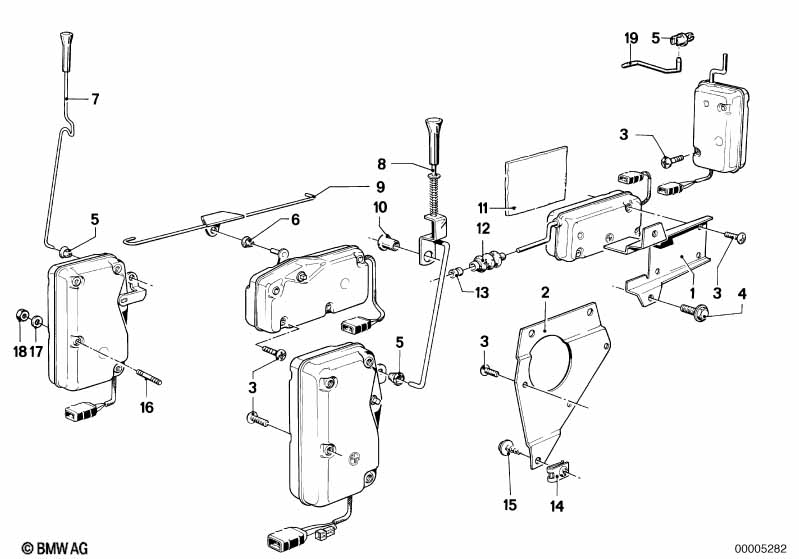

5' E12 535i Central locking system

Central locking system
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Holder 1 51251858098 $10.63 ENDED
02 Bracket left 1 51221853393 $1.40 ENDED
02 Bracket right 1 51221853394 ENDED
03 Fillister head screw M5X16-Z3-2 X 07119906817 $0.45
03 Hex bolt with washer M5X16-Z3 X 07119915111 $2.01 ENDED
04 Hex bolt with washer M6X16-SB-Z3-2 2 07119915022 $0.30
05 Circlip 3 51221817032 $0.31
06 Grommet 3 51216442159 $0.33 ENDED
06 Grommet 3 52208238999 $0.40
07 Lever left 1 51211852853 $6.58 ENDED
08 Lever right 1 51211858264 ENDED
09 Connection piece left 1 51221852721 $12.28 ENDED
09 Connection piece right 1 51221852722 $12.28 ENDED
10 Rivet 1 51211856937 $0.77 ENDED
11 Base 1 51471852859 $0.78 ENDED
12 Rubber boot 1 51251852771 $1.53
13 Sleeve 1 51251857990 $1.00 ENDED
13 Sleeve 1 51258116266 $1.10
14 Body nut ST4,8-3 3 07129901649 $0.15 ENDED
14 Body nut ST4,8-13-ZNS3 3 07129904223 $0.11
15 Fillister head self-tapping screw ST4,8X13-Z1 3 07119907956 $0.18
16 Grub screw 3 61131365564 $9.15 ENDED
17 Wave washer B5 X 07/1981 07119932047 $0.09 ENDED
17 Wave washer B5 X 07119932098 $0.38
18 Hex nut M5 X 07119922038 $0.09
19 Connection rod 1 08/1980 51241881690 $2.71 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
