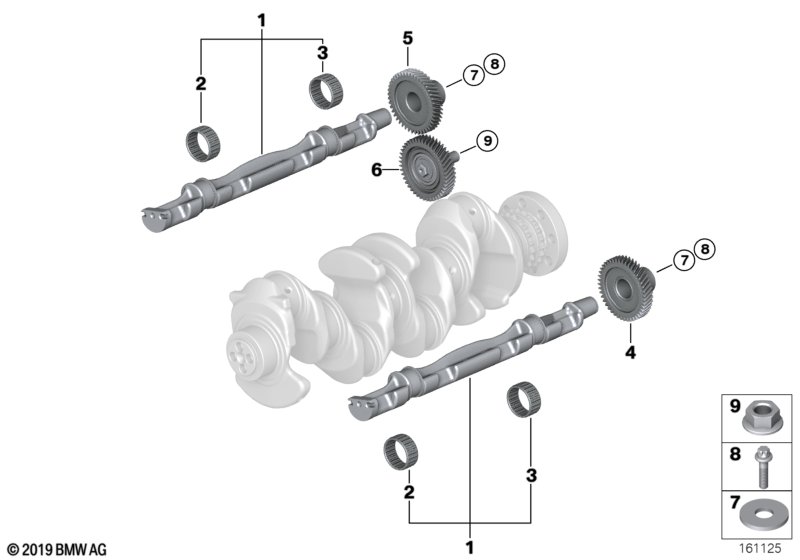

4' F36 Gran Coupé 420d Crankshaft drive mass compensator

Crankshaft drive mass compensator
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Compensating shaft 2 09/2013 10/2016 11278570969 ENDED
01 Compensating shaft 2 09/2013 11278593806
02 Needle bearing D=30MM/37MM 2 09/2013 11278570971
03 Needle bearing D=30MM/37MM 2 09/2013 11278570971
04 Gear wheel 1 11277802575
05 Gear wheel 1 11277802576
06 Gear wheel 1 11278509738
08 ASA bolt with washer 2 11278508003
09 Hex nut M12X1,5 1 11277797952
Notes
  • ENDED = the part has been discontinued (no longer available).
