4' F36 Gran Coupé 420d Cylinder Head Attached Parts

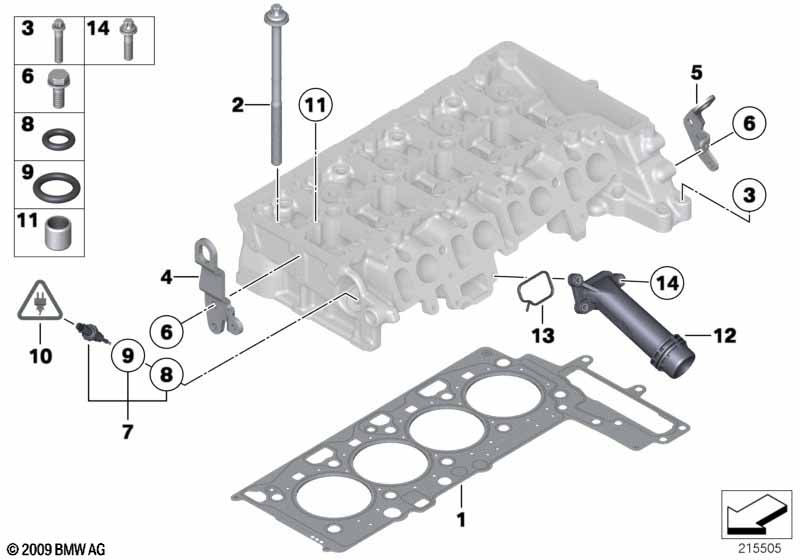

Cylinder Head Attached Parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cylinder Head Gasket Asbestos-Free 1-LOCH 1 11128509146
01 Cylinder Head Gasket Asbestos-Free 2-LOCH 1 11128509147
01 Cylinder Head Gasket Asbestos-Free 3-LOCH 1 11128509148
02 Set Bolt Cylinder Head M12X1,5X200 1 11128513128
03 ASA-Bolt M8X40 5 07119907475
04 Loop 1 11127810693
05 Loop 1 11127812885
06 Hex bolt with washer M8X22 4 07119905739 $0.62
07 Temperature sensor, coolant 1 13627797957
08 O-ring 5,6X2 2 13627807005
09 O-ring 9,3X2,2 1 13627807006
10 Bushing housing MLK 2 POL. 1 12527804179
only in conjunction with
-- Contact bushing MLK 1.2 strand sealing 0,35-0,5MM² AG 2 61138722290
11 Dowel D=10,5MM 2 11121726238 $1.62
12 Connector 1 11127810707
13 Profile-gasket 1 11127810712
14 Torx bolt M6X25-ZNNIV SI 3 07129905569 $0.45
14 Star-socket screw BM6X25-U1-8.8 3 12/2013 07119907490
