4' F36 Gran Coupé 420d Timing case

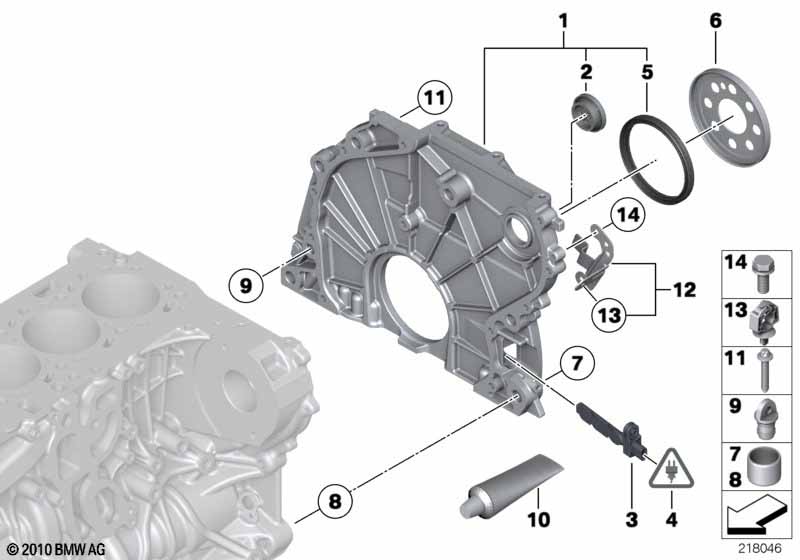

Timing case
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Timing case cover 1 05/2015 11147812891 ENDED
01 Timing case cover 1 11148591627
Required for repair
-- Loctite 5970 liquid sealant 50ML 1 83190404517 $23.40
02 Screw plug M34X1,5 1 11148576339
03 RPM sensor crankshaft 1 13627805188
05 Shaft seal 90X104X8,5 1 11147797490
06 Reluctor 1 03/2015 11147797492 ENDED
06 Reluctor 1 11148605104
07 Dowel D=14,5MM 2 11117524470 $1.65
08 Dowel D=14,5MM 2 11112245180 $1.65
09 Blind plug 1 11111714541 $1.60
10 Loctite 5970 liquid sealant 50ML 1 83190404517 $23.40
11 ASA-Bolt M6X31 11 11147797493
12 Bracket for vacuum hose 1 11668508198
13 Tubing support 1 11668509223
14 Hex bolt with washer M6X16-U1-8.8 2 07119904524 $0.25
Notes
  • ENDED = the part has been discontinued (no longer available).
