4' F36 Gran Coupé 420d Engine acoustics

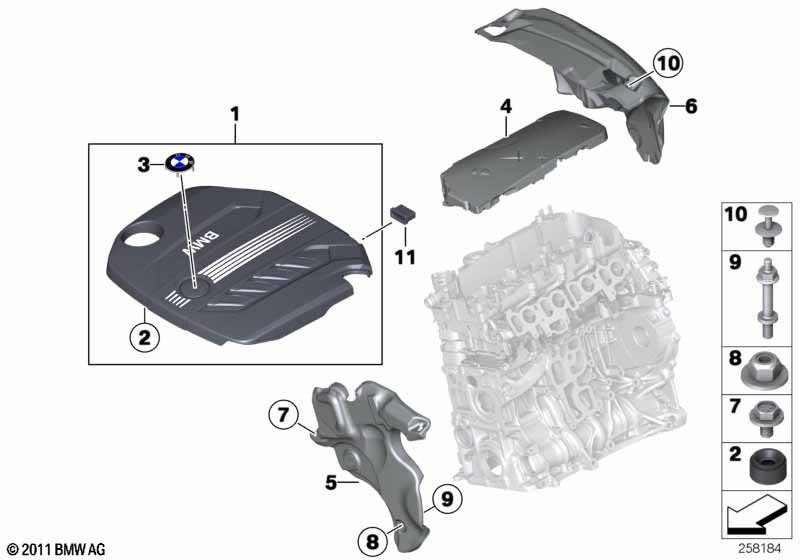

Engine acoustics
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cover, acoustic 1 11147810802
02 Rubber Mounting 2 11147799108
03 BMW emblem 1 11147788967 $11.26
04 Cover, acoustic 1 11147810838 +core
05 Acoustic cover front 1 11148510114
06 Acoustic cover rear 1 11148570012
07 Hex bolt M6X12-Z1-8.8 MK 1 03/2016 34116772886 $0.48 ENDED
07 Hex bolt M6X12-10.9-MK- 1 34116868785
08 Hex nut M6 1 51717065987 $0.79
09 Spacer bolt M8X17/M6X10 1 07/2016 11148513134 ENDED
09 Spacer bolt M8X17/M6X10 1 11148517816
10 Expanding rivet D = 8MM 2 51471911992 $0.40
11 Rubber Mounting 2 17111712911 $1.18
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
