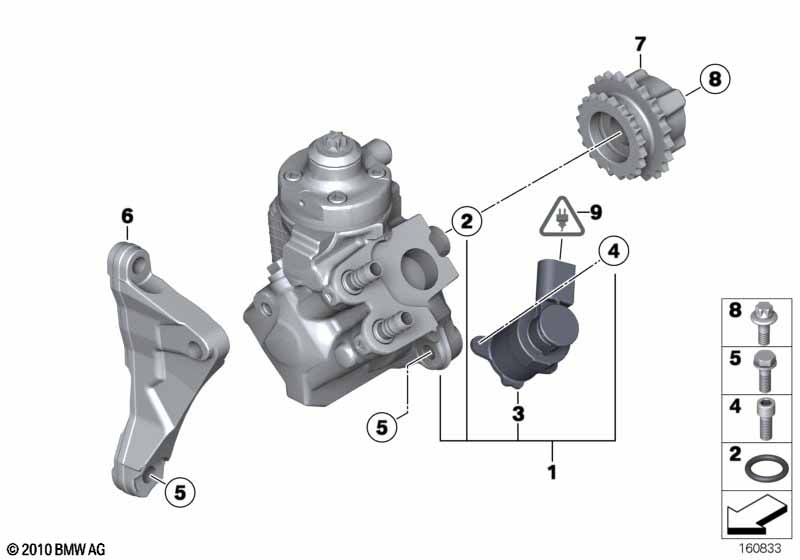

4' F36 Gran Coupé 420d High-pressure pump
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Exchange high-pressure pump | CP4.1 | 1 | 12/2016 | 13518571796 | ENDED | |||
| 01 | Exchange high-pressure pump | CP4.1 | 1 | 13518597819 | |||||
| 02 | O-ring | 1 | 13517804377 | ||||||
| 03 | Flow-control valve | 1 | 13517823454 | ||||||
| 04 | Fillister-head screw | M5X18 | 2 | 13517801986 | |||||
| 05 | Hex bolt with washer | M8X33-U1 | 6 | 07119906149 | |||||
| 06 | Support | 1 | 04/2017 | 13517810698 | ENDED | ||||
| 06 | Support | 1 | 13518599773 | ||||||
| 07 | Sprocket | 1 | 13527797906 | ||||||
| 08 | ASA-Bolt | M12X1 | 1 | 13527800395 |
Notes
- ENDED = the part has been discontinued (no longer available).
