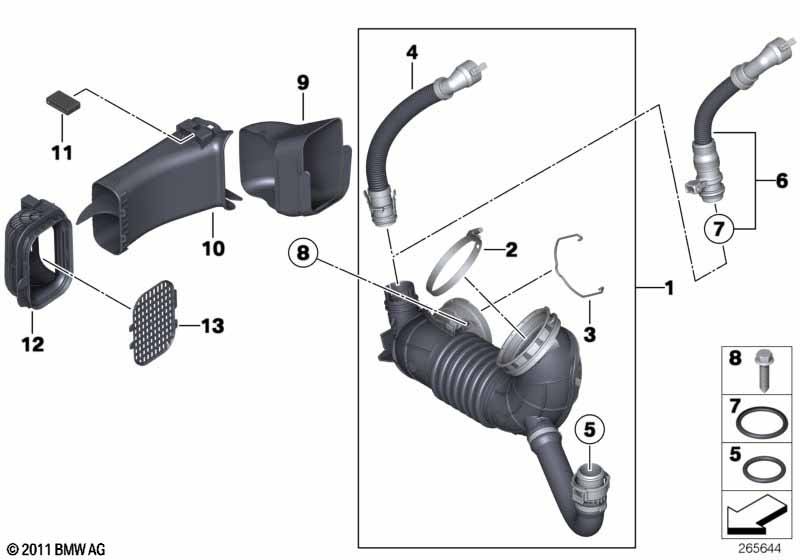

4' F36 Gran Coupé 420d Fresh air duct / air intake
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Filtered air pipe | 1 | 13717810745 | ||||||
| 02 | Hose clamp | L66-86 | 1 | 13717805178 | |||||
| 03 | Spring clip | 1 | 17517802664 | $2.88 | |||||
| 04 | Pipe | 1 | 13717823517 | ||||||
| 05 | O-ring | 28X2,5MM | 1 | 11441406694 | $3.35 | ||||
| 08 | Hex bolt with washer | M6X20-ZNNIV SI | 1 | 07119905750 | $0.62 | ||||
| 09 | Intake duct | 1 | 13717597585 | ||||||
| 10 | Intake duct | 1 | 13717597584 | ||||||
| 11 | Rubber Mounting | 1 | 13718573147 | ||||||
| 12 | Intake manifold, front | 1 | 13717613156 | ||||||
| 13 | Intake grill | 1 | 13718507321 |
