4' F36 Gran Coupé 420d Fuel pipe and mounting parts

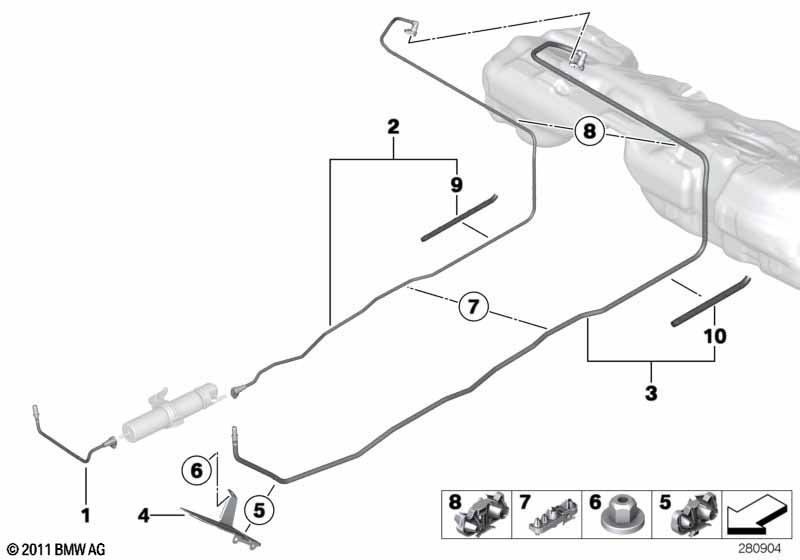

Fuel pipe and mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Front fuel feed line 1 16127244726
02 Fuel feed line 1 16127318357
03 Fuel return line 1 16127318356
04 Guard plate, fuel lines 1 16127244171
05 Wire clip, dual 1 16127277360
06 Plastic capnut with washer D=22MM 3 05/2014 07147169847 $0.36
06 Plastic nut 3 05/2014 07147336362
07 Wiring clip, quadruple 1 16127258742
08 Wire clip, dual D8,12 2 16127258752
09 Guard cover 1 16127318360
10 Guard cover 1 07/2012 16127318361
