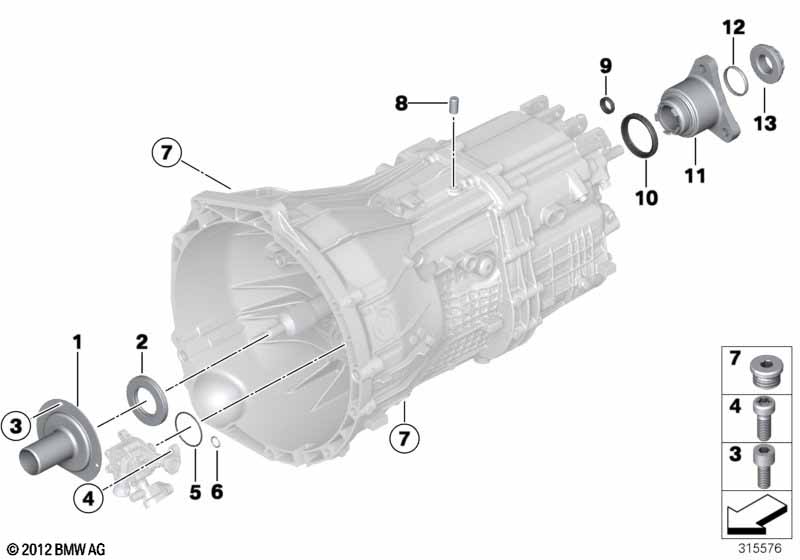

4' F36 Gran Coupé 420d GS6-45BZ/DZ Seals/gaskets/mounted parts

GS6-45BZ/DZ Seals/gaskets/mounted parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Automatic transmission
and
Sport automatic transmission
and
Sport transmission w/ dual-plate clutch

S205A=No

S2TBA=No

S2TCA=No
01 Guide tube 1 23118609225
02 Shaft seal 40X70X9 1 23118609207
03 Torx screw M6X12 3 23117531355 $1.80
04 Torx bolt M6X20 7 23108609226
05 O-ring 46X2 1 23108609209 ENDED
05 O-ring 43X2 1 23108609381
06 O-ring 13X2 2 03/2015 23108609210 ENDED
06 O-ring 13X2 2 23108609382
07 Screw plug M18X1,5X12 2 23127602815
08 Vent pipe 1 23118609229
09 Shaft seal 15X21X5 1 23118609224
10 Shaft seal 50X62X9 1 23118609228
11 Output flange 1 23218609181
12 Gasket ring 1 23128609221
13 Self-locking hex nut 1 23108609220
Notes
  • ENDED = the part has been discontinued (no longer available).
