4' F36 Gran Coupé 420d Electrical steering
Sponsored links
Sponsored links

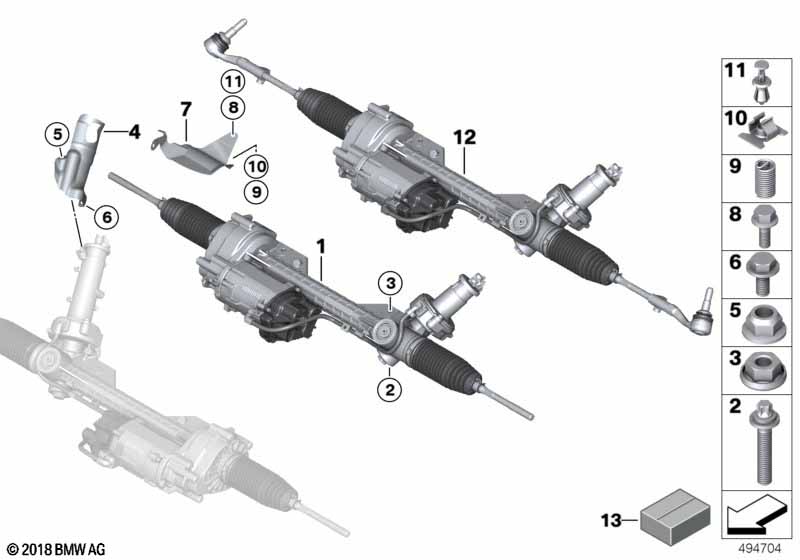

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | Important notice! The system automatically requests the repair enable codes during the programming routine. As an alternative, it is possible to request the enable codes directly by selecting 'Sweeping Technology' in the 'FSC repair information request' menu at the ASAP Portal. |
||||||||
| 01 | Exch. steering box, electr. | TKP | 1 | 11/2014 | 32106870464 | ENDED | |||
| contains EPS control unit | |||||||||
| 01 | Exch. steering box, electr. | TKP | 1 | 03/2015 | 32106872407 | ENDED | |||
| contains EPS control unit | |||||||||
| 01 | Exch. steering box, electr. | TKP | 1 | 07/2015 | 32106874685 | ENDED | |||
| contains EPS control unit | |||||||||
| 01 | Exch. steering box, electr. | TKP | 1 | 10/2015 | 32106875234 | ENDED | |||
| contains EPS control unit | |||||||||
| 01 | Exch. steering box, electr. | TKP | 1 | 07/2016 | 32106877777 | ENDED | |||
| contains EPS control unit | |||||||||
| 01 | Exch. steering box, electr. | TKP | 1 | 03/2017 | 32106881040 | ENDED | |||
| contains EPS control unit | |||||||||
| 01 | Exch. steering box, electr. | TKP | 1 | 11/2017 | 32106886301 | ENDED | |||
| contains EPS control unit | |||||||||
| 01 | Exch. steering box, electr. | TKP | 1 | 32106889115 | |||||
| contains EPS control unit | |||||||||
| 01 | Exch. steering box, electr. | ZF | 1 | 07/2014 | 11/2014 | 32106868239 | ENDED | ||
| contains EPS control unit | |||||||||
| 01 | Exch. steering box, electr. | ZF | 1 | 07/2014 | 03/2015 | 32106874426 | ENDED | ||
| contains EPS control unit | |||||||||
| 01 | Exch. steering box, electr. | ZF | 1 | 07/2014 | 07/2015 | 32106874841 | ENDED | ||
| contains EPS control unit | |||||||||
| 01 | Exch. steering box, electr. | ZF | 1 | 07/2014 | 03/2016 | 32106874859 | ENDED | ||
| contains EPS control unit | |||||||||
| 01 | Exch. steering box, electr. | ZF | 1 | 07/2014 | 03/2017 | 32106883266 | ENDED | ||
| contains EPS control unit | |||||||||
| 01 | Exch. steering box, electr. | ZF | 1 | 07/2014 | 07/2018 | 32106884411 | ENDED | ||
| contains EPS control unit | |||||||||
| 01 | Exch. steering box, electr. | ZF | 1 | 07/2014 | 32106892988 | ||||
| contains EPS control unit | |||||||||
| 01 | Steering gear, electric | 1 | 07/2014 | 32106892986 | NoS | ||||
| contains EPS control unit | |||||||||
| For vehicles with Variable Sport steering |
S2VLA=Yes |
||||||||
| 01 | Exch. steering box, electr. | SPORT/TKP | 1 | 03/2015 | 32106872408 | ENDED | |||
| contains EPS control unit | |||||||||
| 01 | Exch. steering box, electr. | SPORT/TKP | 1 | 07/2015 | 32106874688 | ENDED | |||
| contains EPS control unit | |||||||||
| 01 | Exch. steering box, electr. | TKP | 1 | 10/2015 | 32106875235 | ENDED | |||
| contains EPS control unit | |||||||||
| 01 | Exch. steering box, electr. | TKP | 1 | 07/2016 | 32106877778 | ENDED | |||
| contains EPS control unit | |||||||||
| 01 | Exch. steering box, electr. | TKP | 1 | 03/2017 | 32106881043 | ENDED | |||
| contains EPS control unit | |||||||||
| 01 | Exch. steering box, electr. | TKP | 1 | 11/2017 | 32106886304 | ENDED | |||
| contains EPS control unit | |||||||||
| 01 | Exch. steering box, electr. | TKP | 1 | 32106889118 | |||||
| contains EPS control unit | |||||||||
| 02 | ASA-Bolt | M10X55-10.9 | 2 | 32106797242 | |||||
| 03 | Hexagon nut with collar | M10-10 ZNS3 | 2 | 33326768884 | $1.39 | ||||
| 04 | Steering box heat resistant plate | 1 | 32106792751 | ||||||
| For vehicles with Variable Sport steering |
S2VLA=Yes |
||||||||
| 04 | Steering box heat resistant plate | 1 | 32106865158 | ||||||
| 05 | Self-locking hex nut | M6-8-ZNNIV SI | 1 | 07119905949 | $0.24 | ||||
| 06 | Hexagon screw with flange | M6X10-8.8-ZNS3 | 1 | 07119904128 | $0.53 | ||||
| ATTENTION! This repair kit is only a solution for vehicles with acoustic irregularities in the steering gear! It is mandatory to observe the repair instructions! The repair kit is only logical for Thyssen steering systems (High and Sport). |
|||||||||
| 13 | Repair kit thrust piece AFS | 1 | 03/2018 | 32106891974 | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part, central, not in stock.)
