4' F36 Gran Coupé 420d Rear brake / brake pad / wear sensor

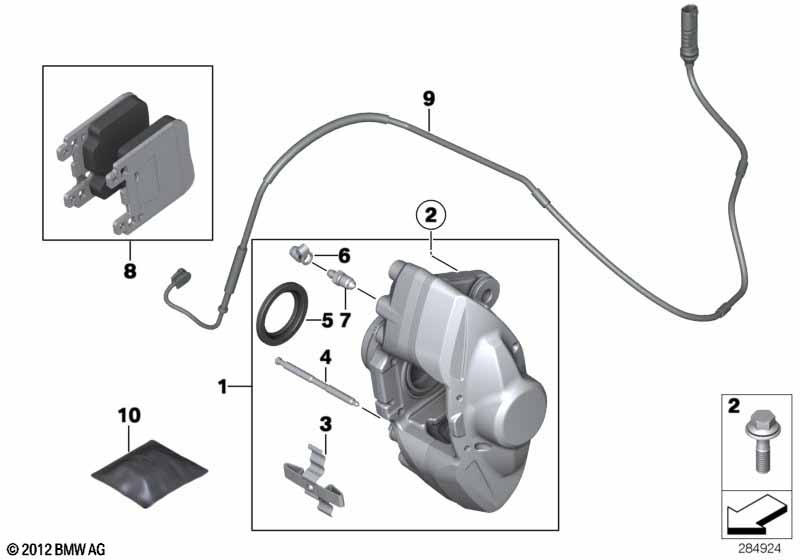

Rear brake / brake pad / wear sensor
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
M Sport brakes

S2NHA=Yes
01 Caliper housing left 1 34216799461
01 Caliper housing right 1 34216799462
02 Hex screw with collar M12X1,5X32 ZNS3 4 34206850536
03 Expansion spring 2 34216857151
04 Guide pin 2 34216857152
05 Repair set brake caliper 2 34216857153
06 Dust cap 2 34116780508 $1.95
07 Ventilation valve 2 34116780509 $3.12
08 Repair kit, brake pads asbestos-free 1 34216887576
The following parts are also
mandatory:
- brake pad wear sensor
- brake pad paste
Also recommended for vehicles older than
48 months:
- replace expanding spring and guide
pin
see repair instruction!
09 Brake pad wear sensor, rear 1 34356792292
10 Brake pad paste 3G 2 83192158851
