4' F36 Gran Coupé 420d Side frame section, center

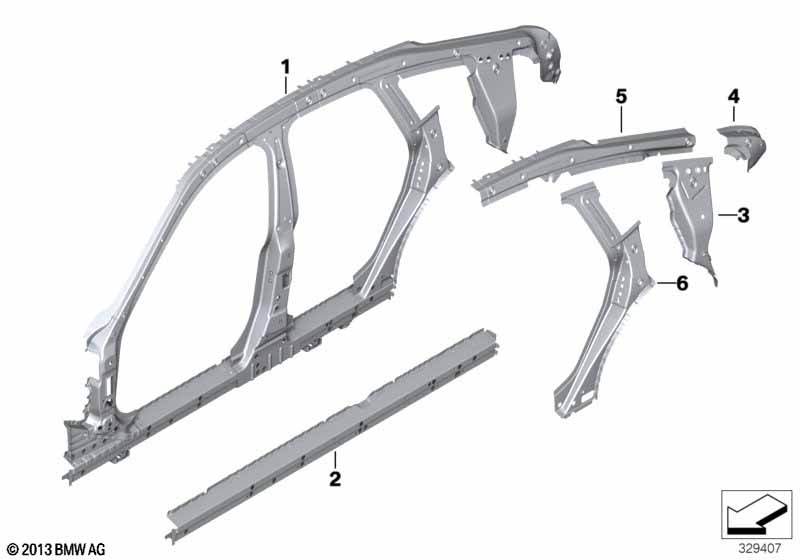

Side frame section, center
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Side frame, center left 1 07/2015 41007333973 ENDED, NoS
01 Side frame, center right 1 07/2015 41007333974 ENDED, NoS
01 Side frame, center left 1 41007427489
Required for repair
01 Side frame, center right 1 41007427490
Required for repair
-- Hexagon screw with taper M12X35 4 07148499258
02 Reinforcement, entry, left 1 41217297977
02 Reinforcement, entry, right 1 41217297978
03 Tension band column C, left 1 41007333997
03 Tension band column C, right 1 41007333998
06 C-pillar support, left 1 41007390169
only in conjunction with
06 C-pillar support, right 1 41007390170
only in conjunction with
-- Threaded plate, striker M8 1 41007356503
Notes
  • ENDED = the part has been discontinued (no longer available).
  • NoS = No Stock (Part, central, not in stock.)
