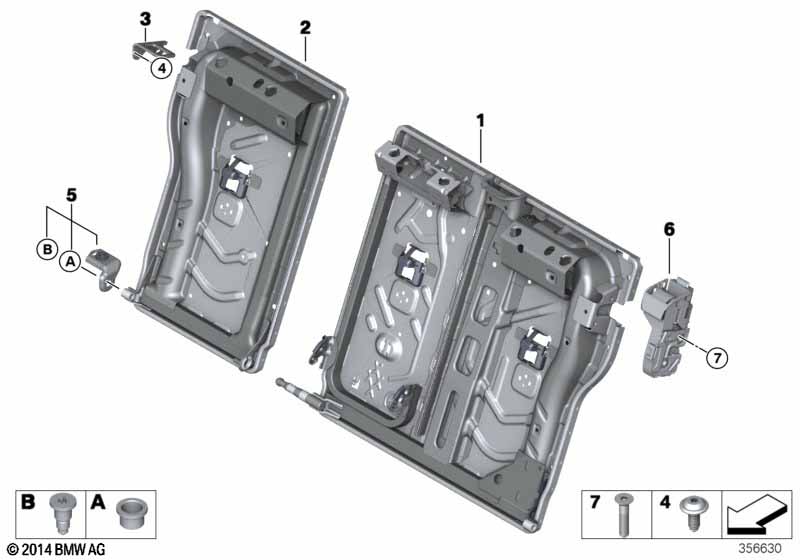

4' F36 Gran Coupé 420d Seat, rear, seat frame, base seat
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Frame, backrest left | 1 | 52207319663 | NoS | |||||
| only in conjunction with | |||||||||
| -- | Repair kit | 1 | 52207349062 | ||||||
| 02 | Frame, backrest right | 1 | 52207243613 | ||||||
| only in conjunction with | |||||||||
| -- | Repair kit | 1 | 52207349062 | ||||||
| 03 | Bar left | 1 | 07/2011 | 52207944937 | ENDED | ||||
| 03 | Bar left | 1 | 52207269951 | ||||||
| 03 | Bar right | 1 | 07/2011 | 52207944938 | |||||
| 03 | Bar right | 1 | 52207269952 | ||||||
| 04 | Torx screw with collar | M8X20 T30 | 1 | 07147124309 | $0.80 | ||||
| 05 | Bracket backrest outer left | 1 | 52207308099 | ||||||
| 05 | Bracket backrest outer right | 1 | 52207308100 | ||||||
| 06 | Catch rear left | 1 | 52207274541 | +core | |||||
| 06 | Catch rear right | 1 | 52207274542 | +core | |||||
| 07 | Torx bolt | M8X40 | 1 | 07147136002 | $1.42 | ||||
Notes
- NoS = No Stock (Part, central, not in stock.)
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
