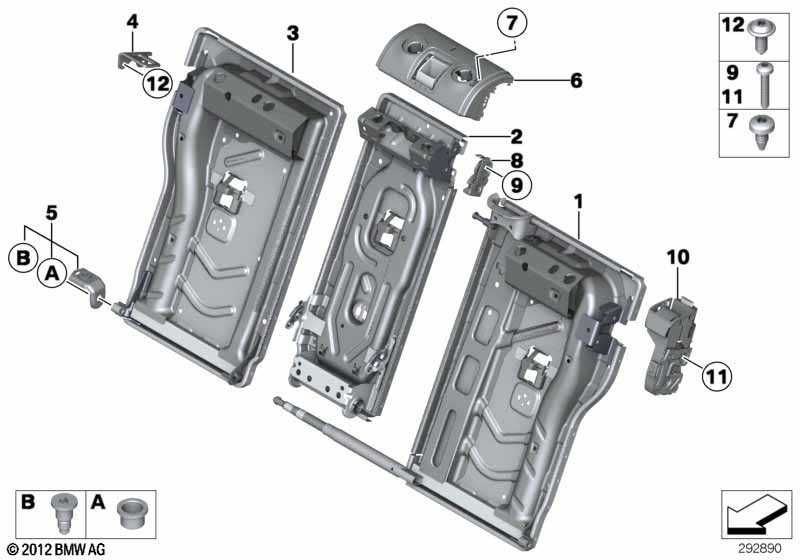

4' F36 Gran Coupé 420d Seat, rear, seat frame, load-through

Seat, rear, seat frame, load-through
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Frame, backrest left 1 52207308965
02 Frame Backrest central 1 52207284742
03 Frame, backrest right 1 52207243613
04 Bar left 1 07/2011 52207944937 ENDED
04 Bar left 1 52207269951
04 Bar right 1 07/2011 52207944938
04 Bar right 1 52207269952
05 Bracket backrest outer left 1 52207308099
05 Bracket backrest outer right 1 52207308100
06 Actuation unit 1 52207277857
07 Oval-head machine screw, self-threading M5X10-ZNNID SW 1 07146777838 $0.36
08 Lock 1 52207237660
09 Fillister head screw M8X30 1 52207266275
10 Catch rear left 1 52207274541 +core
10 Catch rear right 1 52207274542 +core
11 Torx bolt M8X40 1 07147136002 $1.42
12 Torx screw with collar M8X20 T30 1 07147124309 $0.80
12 Fillister head screw M8X20 T40 1 52209145356 $0.50 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
