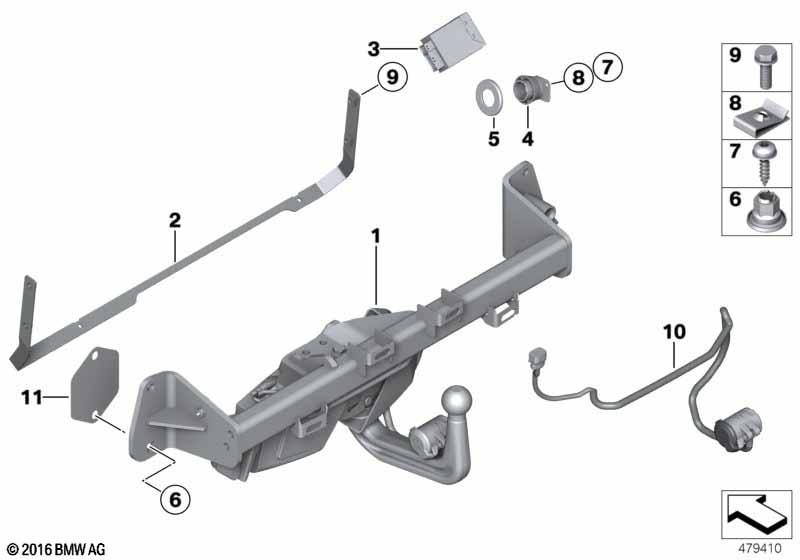

4' F36 Gran Coupé 420d Trailer coupling, electric swiveling
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Trailer coupling, electric swiveling | 1 | 11/2014 | 71606870640 | ENDED, EBA 2357954, EBA 2358044 | ||||
| 01 | Trailer coupling, electric swiveling | 1 | 04/2015 | 71606875701 | ENDED, EBA 2357954, EBA 2358044 | ||||
| 01 | Trailer coupling, electric swiveling | 1 | 71606883983 | ||||||
| 02 | Bow | 1 | 71606868822 | ||||||
| 03 | Control unit for trailer hitch | AAG-01 | 1 | 03/2014 | 07/2014 | 71606867931 | ENDED | ||
| 03 | Control unit for trailer hitch | AAG-01 | 1 | 03/2014 | 07/2015 | 71606870517 | ENDED | ||
| 03 | Control unit for trailer hitch | AAG-01 | 1 | 03/2014 | 11/2015 | 71606872319 | ENDED | ||
| 03 | Control unit for trailer hitch | AAG-01 | 1 | 03/2014 | 03/2016 | 71606874848 | ENDED | ||
| 03 | Control unit for trailer hitch | AAG-01 | 1 | 03/2014 | 11/2016 | 71606879426 | ENDED | ||
| 03 | Control unit for trailer hitch | AAG-01 | 1 | 03/2014 | 11/2017 | 71606884357 | ENDED | ||
| 03 | Control unit for trailer hitch | AAG-01 | 1 | 03/2014 | 71606889589 | ||||
| 04 | Bracket, switch, trailer hitch | 1 | 71606799607 | ||||||
| 05 | Cover | 1 | 71606788653 | +core | |||||
| 06 | Hex nut | M12X1,5 | 4 | 71606795381 | |||||
| 07 | Combi. fillister head self-tapping screw | ST4, 8X16MM | 1 | 51419143799 | $0.22 | ||||
| 08 | Body nut | ST4.8 ZNS3 | 3 | 07146979392 | $0.24 | ||||
| 09 | Hex bolt with washer | M8X25 ZNS3 | 4 | 07119904793 | $0.36 | ||||
| 10 | Repair kit for power socket | WESTFALIA | 1 | 71606781860 | $104.13 | ENDED, +core | |||
| 10 | Repair kit for power socket | WESTFALIA | 1 | 71606875018 | |||||
| 11 | Intermediate plate assy | 2 | 71606878215 |
Notes
- ENDED = the part has been discontinued (no longer available).
- EBA = Einbauanleitung (Installation instructions)
- +core = plus core charge (possibility of a return of the old part)
