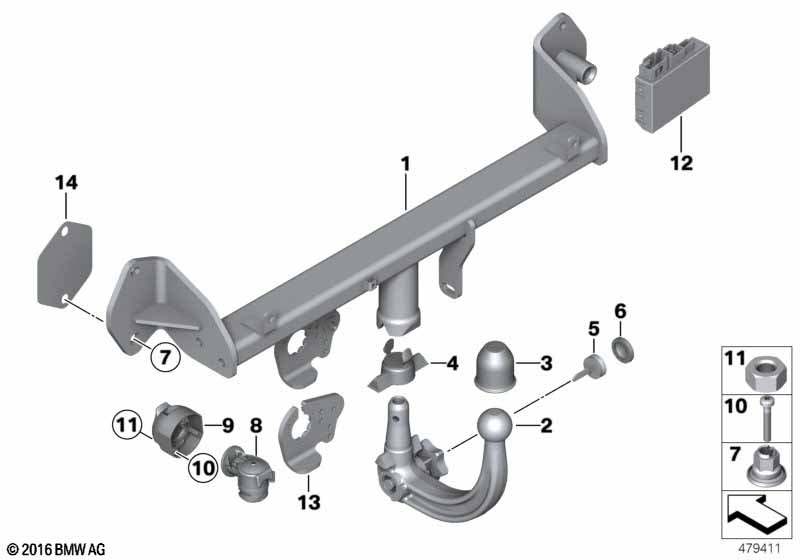

4' F36 Gran Coupé 420d Towing hitch, detachable
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Scdel. of tow.hitch+detach.ball head | 1 | 71606855719 | EBA 2295849 | |||||
| only in conjunction with | |||||||||
| -- | Intermediate plate assy | 2 | 71606878215 | ||||||
| -- | Washer-gasket | 2 | 51127240917 | ||||||
| 02 | Removable ball | 1 | 71606858970 | ||||||
| 03 | Trailer hitch ball protection cap | 1 | 71601246076 | ||||||
| 04 | Blind plug | 1 | 71601094998 | $8.48 | |||||
| 05 | Key (code) 2wxx | WESTFALIA | 1 | 71601094282 | $28.18 | ||||
| 05 | Set of sample keys (Code) 2axx | WESTFALIA | 1 | 71602184373 | +core | ||||
| 06 | protective cap, key | 1 | 71601134422 | $1.04 | |||||
| 07 | Hex nut | M12X1,5 | 4 | 71606795381 | |||||
| 08 | Adapter | 13 - 7 | 1 | 61136942997 | $34.12 | ||||
| 09 | Plug-in socket | 1 | 61131378999 | $76.67 | |||||
| 10 | Countersunk screw | M5 X 35 | 1 | 07119904582 | |||||
| 11 | Hex nut | M5-8-ZNNIV SI | 1 | 07119905729 | |||||
| 12 | Control unit for trailer hitch | AAG-01 | 1 | 03/2014 | 07/2014 | 71606867931 | ENDED | ||
| 12 | Control unit for trailer hitch | AAG-01 | 1 | 03/2015 | 71606870517 | ENDED | |||
| 12 | Control unit for trailer hitch | AAG-01 | 1 | 11/2015 | 71606872319 | ENDED | |||
| 12 | Control unit for trailer hitch | AAG-01 | 1 | 03/2016 | 71606874848 | ENDED | |||
| 12 | Control unit for trailer hitch | AAG-01 | 1 | 11/2016 | 71606879426 | ENDED | |||
| 12 | Control unit for trailer hitch | AAG-01 | 1 | 11/2016 | 71606884357 | ENDED | |||
| 12 | Control unit for trailer hitch | AAG-01 | 1 | 11/2016 | 71606889589 | ||||
| 12 | Control unit for trailer hitch | 1 | 11/2017 | 71606884356 | ENDED | ||||
| 12 | Control unit for trailer hitch | 1 | 07/2019 | 71606889590 | |||||
| 12 | Control unit for trailer hitch | 1 | 63119463373 | ||||||
| 13 | Socket holder | 1 | 71606876237 | ||||||
| 14 | Intermediate plate assy | 2 | 71606878215 | ||||||
| only in conjunction with | |||||||||
| -- | Washer-gasket | 2 | 51127240917 | ||||||
Notes
- EBA = Einbauanleitung (Installation instructions)
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
