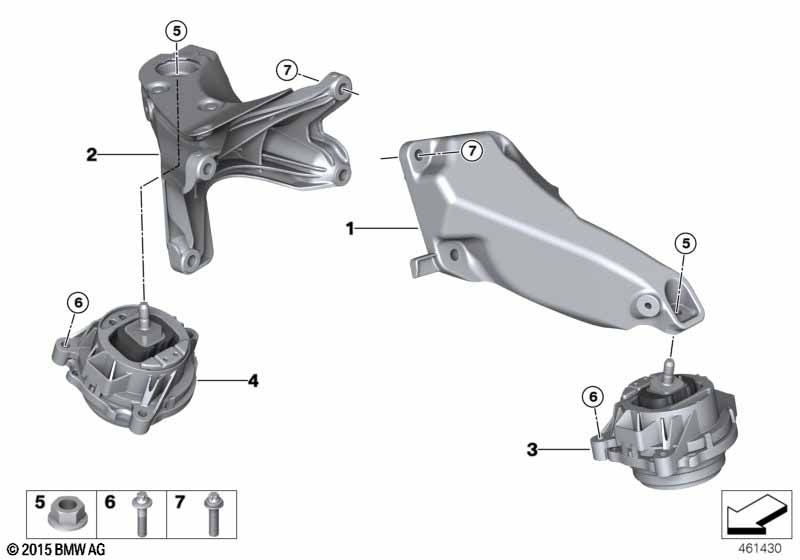

4' F36 Gran Coupé LCI 440iX Engine Suspension

Engine Suspension
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Engine supporting bracket, left 1 22116859019
02 Engine supporting bracket, right 1 22116883144
03 Engine mount, left 1 22116856403
04 Engine mount, right 1 22116861406
05 Flange nut M10-10-ZNS3 2 07119904670 $0.64
06 Torx bolt M8X33-8.8-ZNS3 6 31106794380
07 Star-socket screw BM10X40-U1-8.8- 8 07119908517
