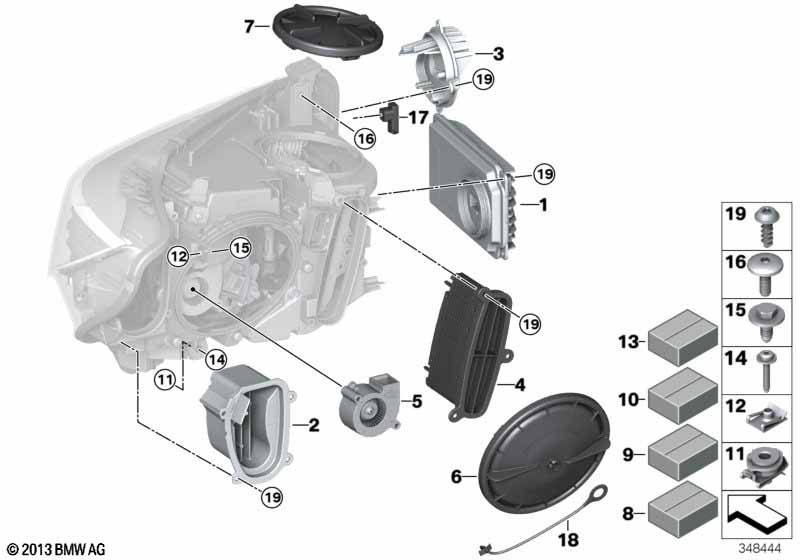

4' F32 420d Single parts, headlight LED
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Adaptive LED headlight |
S552A=Yes |
|||||||
| 01 | LED main light module | 2 | 63117395403 | ENDED | |||||
| 01 | LED main light module | 2 | 63117354974 | ||||||
| 02 | Turn signal LED, left | 1 | 63117379839 | ||||||
| 02 | Turn signal LED, right | 1 | 63117379840 | ||||||
| 03 | Set, LED module, cornering light | 1 | 63117379920 | ||||||
| 04 | Headlight control module, LED | 2 | 03/2016 | 63117427613 | ENDED | ||||
| 04 | Headlight control module, LED | 2 | 63117440881 | ||||||
| 05 | LED display for fan | 2 | 63117379855 | ||||||
| 06 | Covering cap | 2 | 63117379845 | ||||||
| 07 | Covering cap | 2 | 63117379846 | ||||||
| 08 | Set of mounts for headlights | 1 | 63117379929 | ||||||
| 09 | Kit, locking mechanism for plug | 1 | 63117379930 | ||||||
| 10 | Set of repair holders | 1 | 63117379850 | ||||||
| 11 | Alignment element | 4 | 63127280779 | ||||||
| 12 | C-clip nut | M6-ZNS3 | 4 | 51127070202 | $1.00 | ||||
| 13 | Kit, locking mechanism for plug | 1 | 63117379930 | ||||||
| 14 | Fillister head screw | ISA M6X33 | 4 | 07147288888 | |||||
| 15 | Self-locking hex bolt | M6 | 2 | 07146961201 | $1.17 | ||||
| 15 | Self-locking hex bolt | M6 | 2 | 03/2017 | 07146961201 | $1.17 | |||
| 16 | Torx screw with washer | ISA M6X18 | 2 | 07146978618 | $2.56 | ||||
| 17 | Grommet | 2 | 63117379847 | ||||||
| 18 | Retaining strap | 1 | 63117379848 | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
