4' F82 M4 M4 GTS Intake manifold system

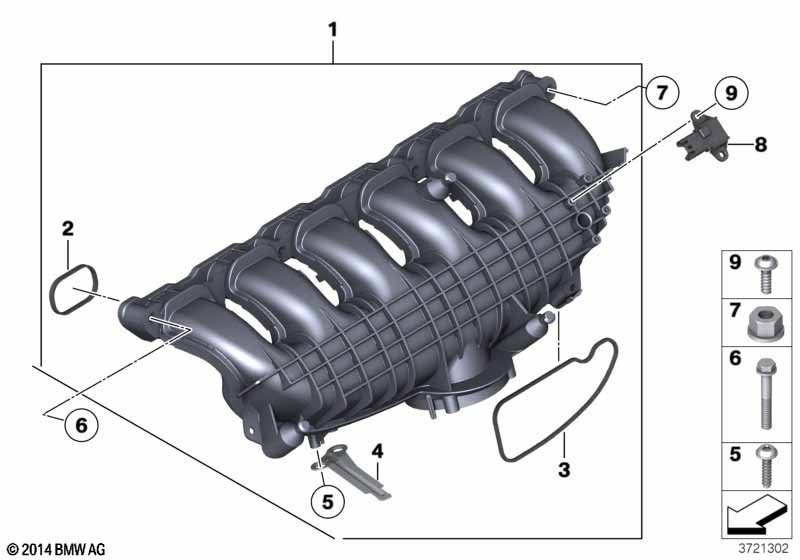

Intake manifold system
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Intake manifold system GTS 1 11617853857
02 Gasket 6 11617524569
03 Gasket 1 11617588624
04 Bracket ventilation valve 1 11617595195 +core
05 Screw 5X20 2 11617535849 $0.75
06 Hex bolt with washer M7X50-U1 2 07119903918 $0.89
07 Hex nut with plate AM7 ZNNIV SI 5 07129905541 $0.64
08 Pressure sensor 1 13627599042
09 Torx screw 50X16 2 13717555679 $0.63
Notes
  • +core = plus core charge (possibility of a return of the old part)
