4' F33 420d Timing case

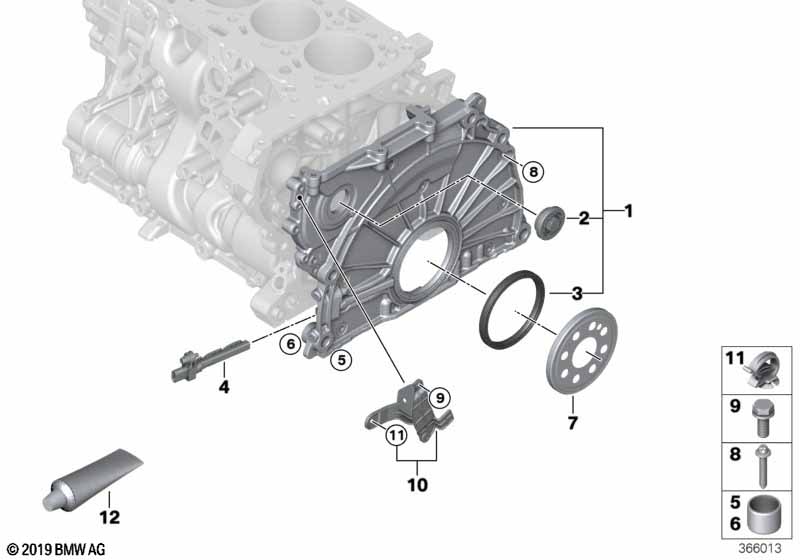

Timing case
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Timing case cover 1 05/2015 11148514005 ENDED
01 Timing case cover 1 11148591625
Required for repair
-- Loctite 5970 liquid sealant 50ML 1 83190404517 $23.40
02 Screw plug M34X1,5 1 11148576339
03 Shaft seal 90X104X8,5 1 11147797490
04 Crankshaft sensor 1 13627806782
05 Dowel D=14,5MM 2 11117524470 $1.65
06 Dowel D=14,5MM 2 11112245180 $1.65
07 Reluctor 1 03/2015 11147797492 ENDED
07 Reluctor 1 11148605104
08 ASA-Bolt M6X31 11 11147797493
09 Hex bolt with washer M6X16-U1-8.8 2 07119904524 $0.25
10 Holder 1 11668572837
11 Cable clip 1 13538517659
12 Loctite 5970 liquid sealant 50ML 1 83190404517 $23.40
Notes
  • ENDED = the part has been discontinued (no longer available).
