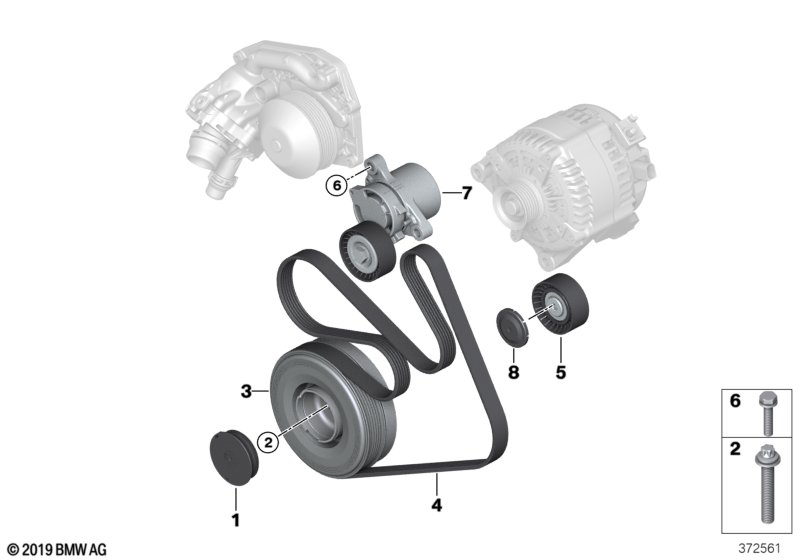

4' F33 420d Belt Drive

Belt Drive
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Covering cap 1 12/2015 11238518985
01 Part not available separately 1 00000000000
02 ASA-Bolt M10X65 4 11238585220
03 Vibration damper 1 11237619245
04 Ribbed v-belt 6 PK X 1663 1 11288573415
05 Deflection pulley 1 12/2018 11287649968
05 Deflection pulley 1 11288477707
06 Star-socket screw M10X45 2 07119908277
07 Mechanical belt tensioner 1 11287619248
08 Protection cap 1 11281435114 $2.37
