4' F33 420d Crankshaft asbly - Connecting rod/piston

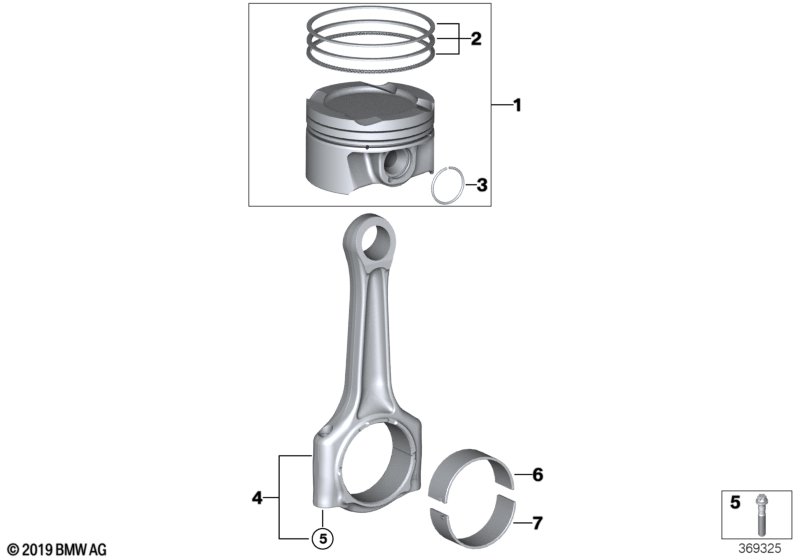

Crankshaft asbly - Connecting rod/piston
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Piston 83,945MM(0) 4 11258571012
02 Repair kit piston rings (0) 4 11258513601
03 Lock Ring 32X2 8 09/2015 11257792785 ENDED
03 Snap ring 32X2 8 11258593785
04 Set connecting rod 1 07/2017 11247807345
04 Set connecting rod 1 11248473776
05 Connecting rod bolt M9X47MM 8 11/2018 11247589671 $4.02
05 Connecting rod bolt M9X47MM 8 11248472924
06 Bearing shell 50,00MM(0) 4 11248516957
07 Bearing shell 50,00MM(0) 4 11248516961
Notes
  • ENDED = the part has been discontinued (no longer available).
