4' F33 420d Exhaust manifold

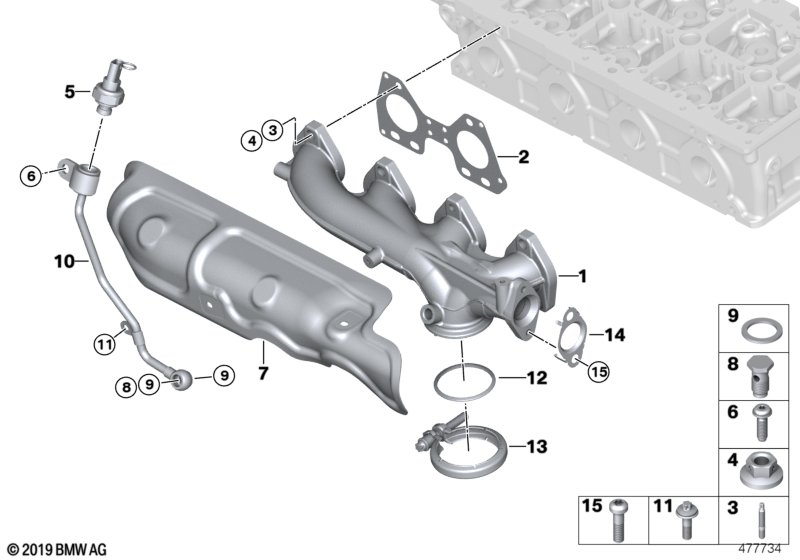

Exhaust manifold
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Exhaust manifold 1 11628519888
02 Gasket Steel 2 11628509783
03 ASA-stud bolt M7X47-10.9-PHR 8 09/2017 11127797695 ENDED
03 ASA-stud bolt M7X47-10.9-PHR 8 11128597830
04 Flange nut M7 8 09/2017 11627800122 ENDED
04 Flange nut M7 8 11628597827
05 Exhaust pressure sensor 1 13628570936
06 screw for plastic TS6X20-F-A2-70 1 13628582284
07 Heat shield for exhaust manifold 1 11628513648
08 Hollow bolt M12X1,5 1 13627811933 $6.15
09 Gasket ring A12X15,5 2 13627811934 $0.52
10 Pipe, backpressure 1 13628514018
11 ASA bolt with washer M6X12 U1 8.8 3 07119908459
12 Gasket ring 1 11628519884
13 Clamp 1 11628519885
14 Gasket Steel 1 11628576287
15 Torx bolt M8X28 2 11712249909 $5.12
Notes
  • ENDED = the part has been discontinued (no longer available).
