4' F33 420d Cooling system - coolant pump/thermostat

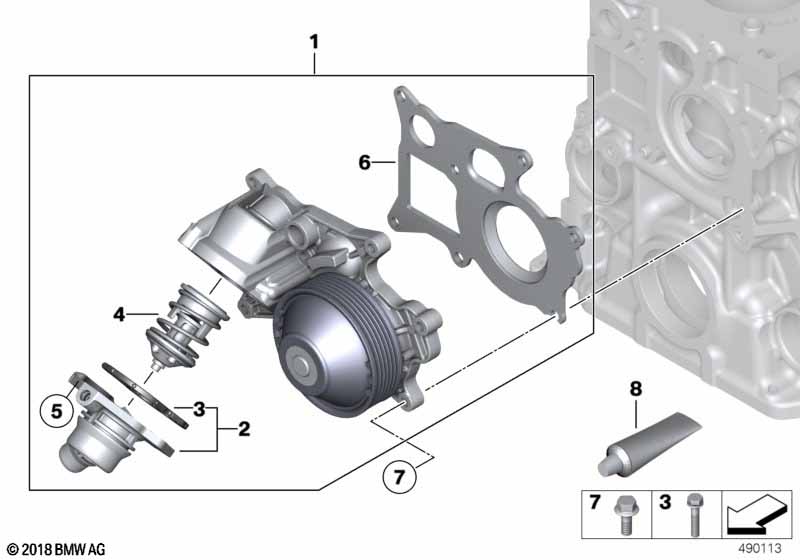

Cooling system - coolant pump/thermostat
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Water pump 1 06/2018 11518591016
ASSEMBLY
01 Water pump 1 11518478476
ASSEMBLY
01 Water pump 1 05/2015 11518585282 ENDED
discontinued
02 Thermostat housing 1 11518577895
03 Profile-gasket 1 11518577888
04 Thermostat 1 05/2015 11518588945
04 Thermostat 1 05/2015 11518588945
only applies to
-- Water pump X 05/2015 11518591016
04 Thermostat 1 05/2015 11518577896
discontinued
05 Hex bolt M6X25 8.8 ZNS3 4 07119907265
06 Intermediate plate assy 1 11518623579
07 Hex bolt with washer M6X30-ZNNIV SI 7 07119906123 $0.81
08 Loctite 5970 liquid sealant 50ML 1 83190404517 $23.40
Notes
  • ENDED = the part has been discontinued (no longer available).
